Nike Missile Site DF-01 Launcher, Grand Prairie Texas

Nike Missile Site DF-01 was a U.S. Army Nike Hercules air-defense missile battery in the Dallas-Fort Worth Defense Area. The site was located north of Denton, Texas, on the northern side of the Dallas-Fort Worth defensive ring. It was one of four Nike Hercules batteries built to defend the Dallas-Fort Worth region during the Cold War, with the other batteries located northeast of Terrell, southeast of Alvarado, and at Fort Wolters.

The site was activated in September 1960 and deactivated in October 1968. Local histories sometimes state that the Denton base closed in 1969, which likely reflects the post-operational disposal period or memory of the site after the battery had already left operational service. For project purposes, the most consistent operational-date range is September 1960 to October 1968.

History

DF-01 was built as part of the Dallas-Fort Worth Nike air-defense network. Unlike the dense Nike rings around some older industrial cities, the Dallas-Fort Worth Defense Area was composed of four long-range Nike Hercules batteries. These sites were built to protect a rapidly growing metropolitan region that had important defense-industrial, aviation, transportation, and Strategic Air Command associations.

The Dallas-Fort Worth region mattered militarily because of its defense-production facilities and because of Carswell Air Force Base, west of Fort Worth. Carswell hosted strategic bomber operations and was one of the major military installations in North Texas. In a Cold War air-defense scenario, Soviet bombers approaching the interior of the United States could threaten both the metropolitan area and its military-industrial assets. DF-01, north of Denton, covered the northern approach to the region.

The DoD Legacy missile history identifies the Dallas-Fort Worth Nike Hercules sites as DF-01 north of Denton, DF-20 northeast of Terrell, DF-50 southeast of Alvarado, and DF-70 at Fort Wolters. Headquarters and command-control facilities were located at Duncanville Air Force Station. The same history notes that the Corps of Engineers Fort Worth District built the four Dallas-Fort Worth sites, that construction began in 1958, and that each site cost roughly $1.5 million for acquisition and construction.

The Dallas-Fort Worth Nike sites were not earlier Ajax batteries later upgraded to Hercules. They were part of the later generation of Nike construction and were built as Nike Hercules sites. This was a significant distinction. Nike Hercules was larger, longer-ranged, solid-fueled, and nuclear-capable, allowing fewer sites to cover a wider defense area than a dense ring of Nike Ajax batteries could have covered.

Units and Manning

The Denton site was manned by Battery A, 4th Missile Battalion, 562nd Artillery, under U.S. Army Air Defense Command, 4th Region. The 4th Missile Battalion, 562nd Artillery was part of the Dallas-Fort Worth Nike Hercules defense structure. Local Denton history and former-personnel recollections identify the Denton battery as A Battery, 4th Missile Battalion, 562nd Artillery.

Before the Denton facilities were complete, personnel were temporarily housed at Camp Wolters / Fort Wolters in Mineral Wells. Former personnel accounts state that the Denton battery moved from Camp Wolters to the Denton site around late 1959 as the facility neared completion. Operational inventory sources list the site as activated in September 1960.

The DoD Legacy history notes that the Dallas-Fort Worth Nike Hercules sites were manned by both Regular Army and National Guard units. For DF-01 specifically, the strongest site-specific unit identification is Battery A, 4th Missile Battalion, 562nd Artillery.

Mission and Operation

DF-01's mission was to detect, track, and, if ordered, engage hostile aircraft approaching the Dallas-Fort Worth region from the north. As a Nike Hercules site, it was part of a regional air-defense network rather than a stand-alone missile post. Its radars, launchers, and crews were tied into higher command-and-control channels that coordinated target identification and engagement decisions.

Nike Hercules used command guidance. The missile did not independently hunt for a target. Instead, radar and computer equipment in the Integrated Fire Control area tracked the target and the missile. Ground equipment calculated an intercept course and transmitted commands to guide the missile toward the target. Nike Hercules could carry conventional or nuclear warheads; its nuclear role was intended to allow a single missile to destroy or disrupt a formation of enemy bombers.

The Dallas-Fort Worth missile-defense network was coordinated from a BIRDIE command-and-control site collocated with Air Force tracking radars at Duncanville Air Force Station. BIRDIE, the Battery Integration and Radar Display Equipment system, was a command-control system used with Nike Hercules defense areas that were smaller or less complex than those requiring the larger Missile Master system. For DF-01, this meant that the Denton battery's local radar and launcher crews were part of a coordinated regional defense system covering all four Dallas-Fort Worth Nike sites.

Site Layout

DF-01 consisted of two principal parcels: the Integrated Fire Control area and the launcher area.

The Integrated Fire Control area was the radar and guidance side of the battery. It was located south of the launch area. This site contained acquisition and tracking radar equipment, fire-control electronics, command and communications functions, power and support systems, and the operating buildings where crews tracked targets and controlled missile flight.

The launcher area was located farther north, along the west side of North Locust Street / FM 2164 north of Denton. This was the missile-storage and launch side of the installation. The site inventory lists DF-01 as Nike 3D/18H/12L-U, indicating three Type D underground magazines, eighteen Nike Hercules missiles, and twelve universal launchers. The Type D designation reflects the improved underground-magazine layout associated with newer Nike Hercules sites.

The separation between the IFC and launcher areas was part of the Nike system's standard architecture. The IFC area needed radar line-of-sight and enough separation from the launch complex. The launcher area required secure land for magazines, launchers, access roads, safety zones, and handling areas. Although the two areas were physically separate, they functioned as a single battery through communications and fire-control links.

Construction and Activation

The Fort Worth District of the U.S. Army Corps of Engineers was responsible for constructing the Dallas-Fort Worth Nike Hercules sites. Construction for the Dallas-Fort Worth system began in 1958. Each site required roughly thirty acres, and the acquisition and construction cost for each battery was about $1.5 million. DF-01 was completed as the northern battery in the defensive ring.

Local histories report that the Denton base was built in 1959 in Denton County. Former personnel accounts describe the battery moving from temporary quarters at Camp Wolters to Denton in late 1959, before the site's formal operational activation. The operational site listings give September 1960 as the activation date. These statements are not necessarily contradictory: construction and occupancy could occur before formal operational status.

Nike Hercules Period

DF-01 was a Nike Hercules-only battery, not an older Ajax site converted to Hercules. This matters because the site's physical layout reflected the later Hercules construction program. The launcher area used underground magazines configured for Hercules operations, and the site was part of a four-battery defense area designed around Hercules range and firepower rather than Ajax density.

The site's Hercules configuration was Nike 3D/18H/12L-U. In practical terms, the three underground magazine sections stored Hercules missiles below grade. Elevator platforms raised missiles to the surface, where crews moved them to launch positions. The universal launchers could handle the larger Hercules missile. The combination of three magazines and twelve launchers made DF-01 a full operational battery, capable of maintaining a significant missile load for the northern sector of the Dallas-Fort Worth Defense Area.

Daily Life and Community Memory

DF-01 was a small but highly technical installation. Personnel maintained missiles, radars, generators, communications systems, vehicles, fences, access roads, magazines, and operating buildings. Missile crews trained for alerts and launch procedures, while radar and fire-control crews trained to identify, track, and engage targets under command authority. As at other Nike batteries, the work was routine in daily practice but built around a high-stakes emergency mission.

The Denton site became part of local memory because it was visible along North Locust Street north of town. Local histories describe the installation as being about six miles north of Denton on the west side of Locust / FM 2164. The site had living quarters and administrative facilities, an IFC area about a mile south of the launcher, and the launch area itself. Former soldiers recalled the official unit identity as Battery A, 4th Missile Battalion, 562nd Artillery.

Deactivation

DF-01 was deactivated in October 1968. Local accounts sometimes state that the base closed in 1969, and photo captions and memory sources may use that date. The best reconciliation is that October 1968 marks the end of operational missile-battery service, while 1969 reflects administrative closeout, disposal, or public memory of the base after the Army mission had ended.

The site closed because the national air-defense mission was changing. By the late 1960s, the primary strategic threat had shifted from massed bomber attack toward intercontinental ballistic missiles and submarine-launched ballistic missiles. Nike Hercules could defend against aircraft, but it could not defend the Dallas-Fort Worth region against a large ballistic-missile attack. Across the country, the Army began reducing and closing many continental Nike sites.

Post-Closure Use and Current Condition

After deactivation, the former DF-01 properties entered civilian and institutional reuse. The most important post-closure reuse was by the University of North Texas. UNT operated an observatory site north of Denton for several decades at the former Nike missile base. The university used the site for small astronomy laboratory classes and monthly public open houses before later moving public observing functions to the Rafes Urban Astronomy Center because of increasing traffic and light pollution around Denton.

Local Denton history reports that after the Army closed the site, parts of the property were sold to a private owner and the rest went to the University of North Texas. UNT operated an observatory and astronomy lab at the former missile-base property until closing that use in 2005. The former launcher area also became associated with other university functions, storage, research, experimentation, and radio transmission; public summaries note the presence of the transmitter tower for UNT's KNTU campus radio station on the former Nike property.

The control and administrative areas had a more mixed post-closure path. Public site listings state that the former housing and administrative complex was sold to a private owner and used as a residence. Civil-defense and local photo documentation from the 2000s and 2010s described surviving buildings and radar-area remnants at the former IFC site, though condition varied and some buildings were deteriorated or damaged.

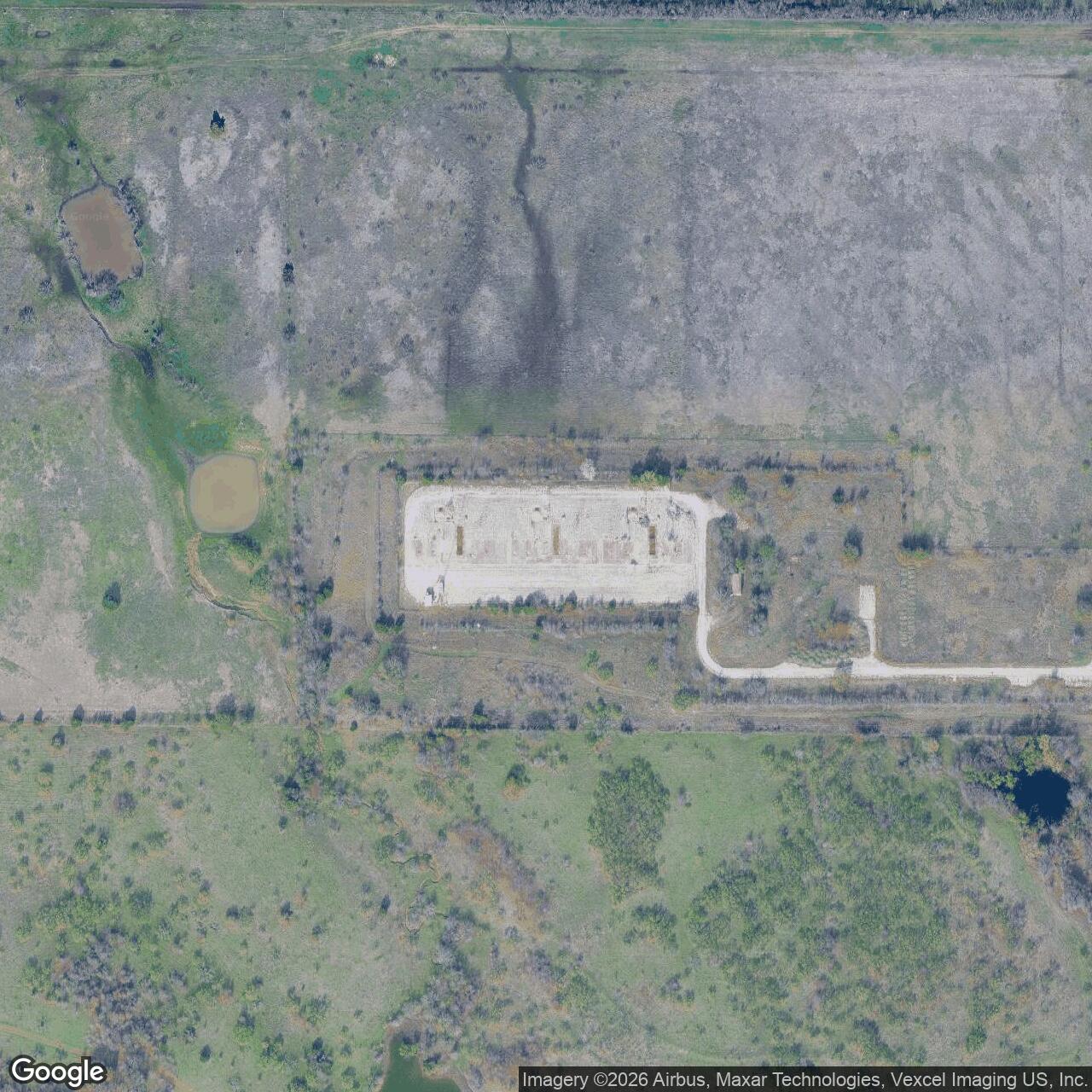

The launch area retained visible Nike features for years after closure. Public photo documentation showed underground magazine entrances, stairways, hatches, launch-area pavement, and related structures. Some surface buildings were later demolished.
