Nike Missile Site H-52 IFC, Rattlesnake Mountain Washington

Nike Missile Site H-52 was a former U.S. Army Nike Ajax surface-to-air missile installation in the Hanford Defense Area of south-central Washington. It was located near Rattlesnake Mountain on the southwestern side of the Hanford reservation, in the shrub-steppe landscape later associated with the Fitzner/Eberhardt Arid Lands Ecology Reserve and the Hanford Reach National Monument. It is no longer active as a military installation. H-52 entered active service in 1955 and was deactivated in December 1958. It was not converted to Nike Hercules.

H-52 was one of four Nike missile batteries established to defend the Hanford nuclear production complex. The other Hanford Defense Area Nike sites were H-06 at Saddle Mountain, H-12 at Othello, and H-83 at Priest Rapids. The four sites replaced and augmented an earlier ring of antiaircraft gun defenses that protected Hanford's reactors, chemical separation plants, laboratories, fuel-fabrication facilities, administrative areas, and supporting transportation and utility infrastructure.

The site's significance is tied directly to Hanford's national-security role. Hanford was created during World War II as the Manhattan Project's industrial-scale plutonium-production reservation. Its reactors and chemical processing plants produced plutonium for the Trinity test and for the Nagasaki weapon, and after the war Hanford remained a central part of the Atomic Energy Commission's Cold War nuclear-weapons production mission. In the early 1950s, before intercontinental ballistic missiles displaced long-range bombers as the dominant strategic threat, planners treated Soviet bomber attack as a serious risk to critical nuclear-industrial targets. H-52 existed to stop or help stop such aircraft before they could reach Hanford.

Hanford and the Cold War Air-Defense Mission

The Hanford Site was defended because it was one of the most important nuclear-production landscapes in the United States. It was not a conventional Army post, port, airfield, or city-defense target. It was a restricted industrial reservation whose wartime and Cold War purpose was to manufacture plutonium for nuclear weapons.

The Manhattan Engineer District and DuPont built Hanford in 1943 and 1944 because the site offered a combination of isolation, federal acquisition potential, Columbia River cooling water, electrical power from the Pacific Northwest grid, rail connections, and enough land to separate dangerous nuclear-industrial operations from surrounding communities. The project displaced Native use and access, and it forced residents of Hanford, White Bluffs, Richland, and nearby settlements from their homes under wartime authority. Within months, the old agricultural landscape was transformed into a massive secret construction zone.

Hanford's wartime mission depended on three broad industrial functions. Uranium fuel was fabricated in the 300 Area near Richland. Production reactors along the Columbia River irradiated the fuel and converted a portion of the uranium into plutonium. The irradiated fuel was then transported to large chemical separation plants in the 200 Area, where plutonium was separated from uranium and fission products. This was a sprawling industrial system with reactors, canyons, laboratories, roads, rail lines, water systems, electrical infrastructure, waste systems, security forces, and planned worker communities.

After World War II, Hanford did not simply become a historic site. It continued to produce plutonium for the Cold War nuclear arsenal. The Cold War intensified Hanford's importance because the United States expanded its nuclear stockpile and constructed additional production capacity. Hanford's operating reactors and chemical-processing plants represented a strategic asset that enemy planners might plausibly target.

The Department of Defense began building antiaircraft artillery defenses around Hanford in 1951. This network became known as Camp Hanford. It included gun batteries, command and support facilities, and thousands of soldiers assigned to defend the Atomic Energy Commission reservation. The Army first used conventional antiaircraft guns, then replaced and augmented those guns with Nike guided missiles as the national air-defense system modernized.

By the mid-1950s, Nike Ajax was the Army's first operational guided missile answer to the bomber threat. It combined radar detection, computer guidance, missile tracking, and surface-to-air intercept capability. At Hanford, Nike missiles were deployed not to defend a population center but to protect a nuclear weapons production complex whose destruction could have had strategic, radiological, and industrial consequences.

Site Location and Setting

H-52 occupied the Rattlesnake Mountain side of the Hanford defensive ring. Its position gave the Army coverage of the southwestern approaches to the reservation and placed the battery in an isolated landscape of ridges, dry washes, grasses, sagebrush, service roads, and long sightlines. The setting was very different from the suburban and metropolitan Nike sites that surrounded cities such as Seattle, Chicago, Philadelphia, or Los Angeles.

The Rattlesnake Mountain landscape was operationally useful. Nike IFC radars needed clear fields of view. Launch areas needed secure land for magazines, launchers, missile-handling areas, fueling and warheading operations, power generation, and access roads. The wide federal reservation allowed the Army to place both IFC and launch components in locations selected for defensive geometry rather than urban land availability.

The site's location also shaped daily life. Soldiers stationed at H-52 were serving in a remote, dry, open landscape. The Rattlesnake Mountain battery was not close to urban conveniences. Its operating environment was hot and dusty in summer, cold and exposed in winter, and visually dominated by desert, ridgelines, and the restricted Hanford landscape. This isolation is part of the site's history. H-52 was a Cold War missile battery embedded in a nuclear reservation, not a community-facing installation.

Site Layout and Facilities

H-52 followed the standard Nike split-site pattern. The Integrated Fire Control area, located west/southwest of the launch area, contained the radar and control equipment that made the system work. The launch area, located farther east near the lower Rattlesnake Mountain area, contained the underground magazines and missile-launching facilities.

The Department of Defense inventory identifies H-52 as Nike 2B/20A/8L-A. In plain terms, this indicates two Type B underground magazines, a nominal complement of twenty Nike Ajax missiles, and eight Ajax launchers. The "A" launcher designation confirms an Ajax launcher configuration.

The IFC area served as the tactical brain of the battery. A Nike Ajax IFC complex normally included acquisition radar, target-tracking radar, missile-tracking radar, fire-control equipment, control vans or permanent control structures, communications equipment, generators, maintenance support, crew spaces, and security fencing. The IFC detected a target, tracked it, tracked the missile after launch, and transmitted steering commands during the engagement.

The launch area served as the missile storage and firing point. Nike Ajax missiles were stored horizontally in underground magazines and brought to the surface by elevator when ordered to fire. A launch area like H-52 included missile magazines, launchers, fueling and warheading areas, missile assembly and test facilities, pump and utility buildings, generator and power support, roads, fencing, security points, and administrative / crew-support structures. Because Nike Ajax used liquid propellants and hazardous support materials, the launch area had a substantial industrial and environmental footprint even though the battery itself was small compared with a full Army post.

H-52 is unusually well documented in later Department of Energy environmental and cultural-resource records. DOE records identify multiple former H-52 buildings and features by number and function, including a barracks/administration building, barracks, mess hall, administration/recreation/storage building, pump house, underground missile storage facility, latrine, missile assembly and test building, aluminum paint shed, sentry box/guard shack, fueling and warheading area, acid storage shed, crow's nest/observation post, and J.P. fuel pad. These details help show that a Nike battery was more than a set of launchers; it was a small, technically complex, self-contained air-defense facility.

How the Nike Ajax System Worked

Nike Ajax was a ground-controlled, radar-guided missile system. It did not operate as an independent missile that found targets on its own. The battery's ground radars and fire-control computer performed the critical work.

The acquisition radar searched for hostile aircraft. Once a target was selected, the target-tracking radar followed it. A separate missile-tracking radar followed the missile after launch. The fire-control computer compared the target's course with the missile's course, calculated the intercept geometry, and sent steering commands to the missile. When the missile reached the calculated intercept point, the system commanded detonation of the conventional warhead.

This is why H-52's IFC and launch areas have to be treated as one installation even though they were geographically separate. The launch area contained the weapons, but the IFC controlled the engagement. The launch area could not perform the mission without the IFC, and the IFC had no purpose without the launchers and missiles.

Operational History

H-52 became operational in 1955 as one of the four Nike Ajax batteries in the Hanford Defense Area. The Department of Defense Legacy Program history states that Nike missiles replaced and augmented gun batteries previously installed to defend Hanford's nuclear industrial complex. It identifies the four Hanford Nike Ajax sites as H-06 Saddle Mountain, H-12 Othello, H-52 Rattlesnake Mountain, and H-83 Priest Rapids. Headquarters facilities for the Hanford Defense Area were at Camp Hanford.

H-52's operational mission was to protect Hanford from air attack. It was part of a defensive ring and would have worked in conjunction with the other Hanford Nike batteries, radar warning, communications networks, and Army air-defense command arrangements. Its purpose was not independent combat action but integrated defense of a critical Cold War production reservation.

The site had a short Army service life. H-52 operated from 1955 until December 1958. At that point the Hanford Nike network was reduced. H-12, H-52, and H-83 were deactivated, while only H-06 Saddle Mountain was converted to Nike Hercules. H-06 remained active until December 1960, after which the Hanford Hercules equipment was forwarded to the Norfolk Defense Area site at Deep Creek / Portsmouth. H-52 should therefore be treated as an Ajax-only Nike site with no Hercules conversion date.

The short operating life does not mean the site was unimportant. Rather, it reflects how quickly the early Cold War air-defense system changed. Nike Ajax itself was a transitional system. It represented a leap beyond antiaircraft artillery, but it was soon overtaken at selected sites by Nike Hercules, which had greater range and nuclear capability. At the same time, the strategic threat was changing from massed bomber attack toward ballistic missiles. Hanford's missile defenses were installed, narrowed, and ended within a single decade.

Units and Manning

H-52 was part of the Camp Hanford Army air-defense structure. The broader Hanford Nike force was associated with the 83rd Antiaircraft Artillery Missile Battalion and, during the 1958 Army air-defense redesignation period, the 1st Missile Battalion, 52nd Artillery. H-52's Rattlesnake Mountain battery is often associated in secondary Nike compilations with Delta Battery / D Battery within that structure.

Because H-52 closed in December 1958, its operational life straddled the end of the earlier AAA missile battalion naming system and the beginning of the missile-battalion artillery designation. H-52 was manned by U.S. Army air-defense personnel assigned to the Camp Hanford / Hanford Defense Area Nike missile battalion system, with D Battery / 1st Missile Battalion, 52nd Artillery as the likely late-1958 battery association.

Daily work at H-52 would have centered on readiness. Crews maintained radars, power systems, communications, missile magazines, launchers, elevators, missile test equipment, propellant and warhead handling procedures, security systems, and vehicles. They drilled for alerts, practiced tracking and simulated engagements, maintained the site's physical plant, and supported a mission that required immediate response even though it might never be executed.

Closure and Post-Military Use

H-52 was deactivated in December 1958 when the Hanford Defense Area was reduced from four Nike Ajax sites to one Hercules-converted site at H-06. Camp Hanford became an outpost of Fort Lewis in 1959. The remaining Hanford missile battalion and batteries were deactivated in 1960, and Camp Hanford officially closed on March 31, 1961.

H-52's post-military history differs from H-12 and H-83. H-12 and H-83 are generally described as demolished, removed, or obliterated in later inventories. H-52, by contrast, had substantial surviving facilities for decades. The 1996 Department of Defense inventory described the H-52 control and launch sites as intact and associated with Pacific Northwest Laboratories / Pacific Northwest National Laboratory headquarters use. Later Department of Energy records show that multiple H-52 structures were still present in the 2000s and were evaluated as eligible historic properties associated with the Manhattan Project and Cold War Era Historic District.

After the Army mission ended, the H-52 area became part of Hanford's post-military research and environmental-management landscape. The Arid Lands Ecology Reserve, later the Fitzner/Eberhardt Arid Lands Ecology Reserve, used the relatively undisturbed Rattlesnake Mountain landscape for ecological research. DOE records state that one underground missile storage facility was being used for gravitational physics research, while other pre-existing and recently constructed buildings in the area were used by the U.S. Fish and Wildlife Service. University of Washington researchers also identified the former Nike missile bunker, Building 6652-L, as the Battelle Gravitational Physics Laboratory.

This later scientific reuse is a major part of H-52's significance. Few Nike sites moved so directly from Cold War weapons defense into environmental and physics research. The very features that made the site useful for the Army - federal isolation, low disturbance, large land buffer, infrastructure, and substantial underground space - later made parts of it useful for science.

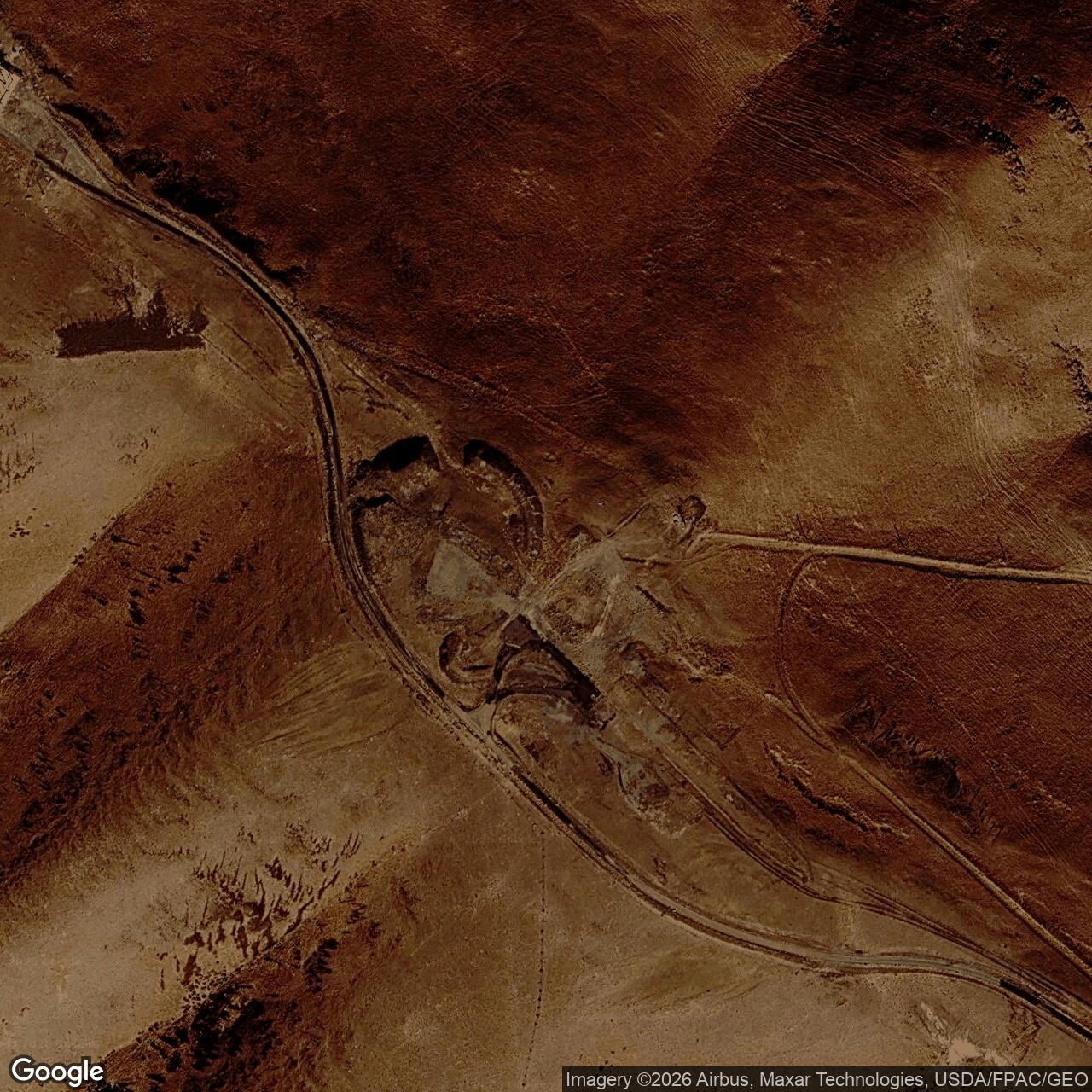

Current Condition and Preservation / Demolition Issues

Current-condition reporting for H-52 must be treated carefully because sources describe the site at different dates and use different definitions of "removed," "intact," and "demolished." The Department of Defense inventory preserved in To Defend and Deter describes H-52's control and launch areas as intact and associated with Pacific Northwest Laboratories headquarters. HistoryLink later states that the Rattlesnake Mountain control and launch sites have been removed. The 2009 DOE environmental assessment provides a more detailed middle picture: many former H-52 Nike Missile Base buildings and features still existed or were documented, twelve National Register-eligible former Nike structures were proposed for demolition, and Buildings 6652-K and 6652-O were identified as buildings that the U.S. Fish and Wildlife Service would continue to use rather than demolish.

The same DOE record identifies H-52 features including the underground missile storage facility, missile assembly and test building, pump house, fueling and warheading area, acid storage shed, sentry/guard structure, paint shed, barracks, mess hall, and administrative buildings. It also notes that Building 6652-L was being used for gravitational physics research and that demolition activities could affect sensitive instruments at both the former Nike area and the nearby LIGO facility.

Atomic Heritage Foundation visitors in 2013 described the Rattlesnake Mountain Nike Missile Site as once having been a large series of underground bunkers, with two bunkers remaining at that time and connected by an underground tunnel. That account supports treating H-52 as a site with surviving underground or partially surviving remnants after its Army closure, even if many aboveground buildings were removed or scheduled for removal.

Chronology

• 1943 The federal government acquired the Hanford area for the Manhattan Project, displacing local communities and restricting Native and local land access.
• 1943-1945 The Manhattan Engineer District and DuPont built the Hanford plutonium-production complex.
• 1944 Hanford's B Reactor became the world's first full-scale plutonium production reactor.
• 1945 Hanford-produced plutonium was used in the Trinity test and the Nagasaki weapon.
• 1947 The Atomic Energy Commission took control of Hanford from the wartime Manhattan Engineer District.
• 1951 The Department of Defense established antiaircraft artillery defenses around Hanford.
• 1951-1961 Camp Hanford operated as the Army air-defense complex for the Hanford Site.
• 1955 The Army began replacing and augmenting Hanford antiaircraft gun defenses with Nike Ajax missiles.
• 1955 Nike Ajax Site H-52 at Rattlesnake Mountain became operational.
• 1955-1958 H-52 operated as a Nike Ajax battery defending the Hanford nuclear production complex.
• 1955-1956 H-52 buildings and features later documented by DOE were built, including administrative, barracks, storage, pump, underground missile-storage, missile assembly/test, fueling, warheading, and support structures.
• 1957 H-52's sentry box / guard shack was built, according to DOE cultural-resource documentation.
• 1958-09 The Hanford Nike battalion structure entered the Army's missile-battalion artillery redesignation period.
• 1958-12 H-52 was deactivated. H-12 and H-83 were also deactivated; only H-06 Saddle Mountain was retained and converted to Nike Hercules.
• 1959-07-01 Camp Hanford became an outpost of Fort Lewis.
• 1960 The remaining Hanford missile battalion and batteries were deactivated.
• 1961-03-31 Camp Hanford officially closed.
• 1970s-1990s The Rattlesnake Mountain / ALE landscape supported environmental and ecological research after the Army air-defense mission ended.
• 1996 The Department of Defense Legacy Program inventory listed H-52's control and launch areas as intact and associated with Pacific Northwest Laboratories / Pacific Northwest National Laboratory headquarters use.
• 2002 DOE historic documentation identified scientific and engineering attributes of former Nike missile base buildings in the Hanford Site Historic District context.
• 2009 DOE's environmental assessment for infrastructure cleanup on the Fitzner/Eberhardt Arid Lands Ecology Reserve identified multiple H-52 buildings and features, noted National Register eligibility / documentation, proposed demolition of some structures, and identified 6652-K and 6652-O as buildings to be retained for U.S. Fish and Wildlife Service use.
• 2009 DOE records identified one former underground missile storage facility as in use for gravitational physics research.
• 2011 University of Washington gravitational-physics researchers expected to remove equipment from Building 6652-L, the former Nike bunker / Battelle Gravitational Physics Laboratory, around May 1, 2011.
• 2013 Atomic Heritage Foundation visitors described the Rattlesnake Mountain Nike Missile Site as retaining two bunkers connected by an underground tunnel.
• Present H-52 is inactive and decommissioned as a military site. Major portions have been removed or demolished after documentation, while the former site remains part of the DOE / Hanford Reach federal land and stewardship landscape.
