Nike Missile Site S-82 Launcher, Winslow / Bainbridge Island Washington

Nike Missile Site S-82 was the Winslow / Bainbridge Island Nike Ajax missile battery in the Seattle Defense Area. It was a former U.S. Army air-defense installation built during the early Cold War to help defend the Seattle-Puget Sound target complex from Soviet long-range bomber attack. It was not an intercontinental ballistic missile site and it was not a Nike Hercules site. S-82 was an Ajax-only surface-to-air missile battery that used radar-guided Nike Ajax missiles to engage hostile aircraft approaching the defended Puget Sound region.

The federal technical inventory lists S-82 as active from 1958 to November 1960.

S-82 should be identified as the Bainbridge Island / Winslow site. It should not be confused with S-92. Some secondary lists have mislabeled S-92 as Bainbridge Island, but the Kingston site was S-92. The Bainbridge Island site was S-82. The former S-82 control area became Eagledale Park, and the former S-82 launch area became Strawberry Hill Park.

Strategic Setting and Purpose

S-82 existed because Seattle and Puget Sound were among the most important Cold War defense regions in the Pacific Northwest. The Seattle-Puget Sound region contained Boeing aircraft and aerospace production facilities, the Puget Sound Navy Yard and related naval installations, major port infrastructure, McChord Air Force Base, Fort Lewis, Fort Lawton, regional shipbuilding and repair facilities, and critical transportation corridors. In the 1950s, U.S. defense planners expected that a nuclear attack on the continental United States might come first by long-range bomber aircraft. Nike missile batteries were therefore placed around major target areas as a final guided-missile defense layer.

Bainbridge Island occupied an important position in that defensive geography. It stood across Puget Sound from Seattle and near the naval and industrial side of the region. A site on Bainbridge Island helped cover western and northwestern approaches to the central Puget Sound area, including air avenues over water and the Kitsap side of the sound. S-82 complemented other west-side and island batteries such as S-61 on Vashon Island, S-62 at Olalla, S-81 at Poulsbo, and S-92 at Kingston. Together, the Seattle-area batteries formed a ring of fire around the target complex rather than simply protecting downtown Seattle alone.

S-82 was a first-generation Nike Ajax site. Nike Ajax was the Army's first operational guided surface-to-air missile. The Ajax missile used a solid-fuel booster and a liquid-fueled sustainer. It was radar guided, carried conventional high-explosive warheads, and was intended to destroy individual bomber targets. In the 1950s, that represented a major technical leap beyond gun-based antiaircraft defenses, but the system had limitations: Ajax sites had shorter range than later Hercules batteries, used hazardous liquid fuel and oxidizer handling, and could not cover as much airspace as the longer-range Hercules system.

When the Army introduced Nike Hercules, it could defend the same region with fewer, longer-ranged, more powerful batteries. Hercules used solid fuel, had a longer reach, and was nuclear-capable. As a result, many Seattle-area Ajax batteries closed soon after the Hercules conversion program began. S-82 was one of those short-lived Ajax-only sites. It did not receive Hercules modernization and closed in November 1960.

Site Layout and Facilities

Like other Nike batteries, S-82 was physically divided into separate but operationally connected sections.

The Integrated Fire Control area, or IFC/control site, was south of Winslow at the location now associated with Eagledale Park. The IFC was the radar, computing, and engagement-control portion of the battery. Its main functions were target acquisition, target tracking, missile tracking, fire-control computation, communications, and command guidance. The IFC area needed radar exposure, line-of-sight relationship with the launch area, and enough space for radar towers, generator and support buildings, barracks or administrative buildings, roads, security fencing, and utility infrastructure.

The launch area was west/northwest of Winslow on High School Road, now Strawberry Hill Park. The launcher site contained the underground missile magazines, missile elevators, launchers, missile assembly/checking facilities, fuel and support areas, and related security and utility features. Nike Ajax missiles were stored horizontally in magazines below ground. During alert or drill operations, missiles could be brought to the surface by elevator, moved onto launch rails, checked, elevated, and fired under command guidance from the IFC.

The federal technical inventory describes S-82's launch and control areas as partially intact in the late inventory period, with the control site under Bainbridge Park District / Eagledale Park use and the launch site under Strawberry Hill Park use. Mark Morgan / Ed Thelen notes likewise described the control site as partially intact at 4900 Rose Avenue, with a few buildings remaining at the time of the field note, and the launch site west of town on High School Road as Strawberry Hill Park, where the launcher area had been leveled and covered and used as playing fields.

Land Acquisition and Construction

The broader Seattle Defense Area was surveyed in 1954, and the Army used both federal and non-federal land where necessary. In the Bainbridge Island case, later Washington Department of Ecology / FUDS review states that the former S-82 property was obtained for Army use between 1954 and 1956 through a combination of condemnation proceedings, purchases, and no-area/no-cost licenses. That same 2021 review describes the S-82 property as two non-contiguous areas: a former control area and a former launch area.

The acreage figures in the 2021 Ecology/FUDS review are broader than the park-specific acreage often cited for the visible former military core. Ecology describes the overall FUDS property as 224.58 acres, consisting of a 167.86-acre former control area and a 56.72-acre former launch area. Within those larger areas, Ecology identifies 6.67 fee-owned acres at the former control area, currently Eagledale Park, and 17.83 fee-owned acres at the former launch area, currently Strawberry Hill Park, as the principal areas associated with Nike operations.

Operational History

The Seattle Defense Area began receiving Nike Ajax missiles in the mid-1950s. Temporary batteries initially supported the defense while permanent launch and radar sites were constructed around the Puget Sound region. By the late 1950s, the Seattle area had a dense network of Nike batteries, including sites at Kenmore, Redmond, Cougar Mountain / Issaquah, Lake Youngs / Renton, Kent / Midway, Vashon Island, Olalla, Poulsbo, Bainbridge Island, and Kingston.

S-82 served the Bainbridge Island / Winslow sector of that network. The federal inventory lists the active-service dates as 1958 to November 1960. The site was operated as Nike Ajax Battery A, 4th Battalion, 4th Artillery Regiment, according to the 2021 Washington Department of Ecology review of the Former Winslow Nike Battery 82 FUDS property.

As an Ajax battery, S-82's combat function was to engage aircraft assigned to it by the Seattle defense command-and-control system. In a typical engagement, the acquisition radar would detect and help identify a target, the target-tracking radar would lock onto that aircraft, the missile-tracking radar would follow the launched missile, and the battery's fire-control computer would calculate the intercept solution and transmit guidance commands. The missile carried conventional high-explosive warheads designed to destroy or disable an aircraft near the intercept point.

S-82 was active during a period when the Seattle Nike batteries were highly regarded. The federal Seattle Defense Area history notes that Seattle-based Nike Ajax batteries earned the ARADCOM Commander's Trophy in 1956, 1957, and 1958 because of high annual-service-practice scores at McGregor Range. S-82 was part of that broader Seattle-area air-defense environment, though the available sources do not break down trophy performance by individual Bainbridge Island battery.

The site's active life was short. By the end of the 1950s, Nike Hercules changed the air-defense network. In Washington, the Army converted selected existing sites rather than retaining every Ajax battery. In the Seattle Defense Area, the long-lived Hercules positions were S-13/S-14 at Redmond, S-61 on Vashon Island, and S-92 at Kingston. S-82 was not one of the converted sites. It closed in November 1960, only a few years after the permanent battery entered service.

Command, Control, and Regional Integration

S-82 did not operate as an isolated island defense post. It was part of a coordinated Seattle air-defense system that linked Nike batteries, regional command posts, Air Force/NORAD radar warning, and local defense-area target assignment. Fort Lawton played a central role in the Seattle Nike command-and-control network. The area had a Missile Master command-and-control complex at Fort Lawton, and after the Ajax network contracted, a less complex BIRDIE system handled coordination for the reduced number of Hercules batteries.

This command-and-control context matters because the Nike system was designed to solve a regional air-defense problem, not simply to fire missiles from individual sites. In a mass bomber raid, multiple batteries could otherwise waste missiles on the same target while other aircraft penetrated the defense. The Missile Master/BIRDIE layer allowed regional commanders to assign targets and coordinate engagements. During S-82's service period, this was especially important because the Seattle ring included many batteries spread across islands, the Kitsap Peninsula, the east side of Lake Washington, and southern King County.

Post-Closure and Reuse

S-82 closed in November 1960. After closure, the former control and launch areas eventually became part of Bainbridge Island's park system.

Bainbridge Island Parks took over the control and launch areas in 1974; the former control area became Eagledale Park and the former launch area became Strawberry Hill Park. A current Bainbridge Island Metro Park & Recreation District article describes Eagledale Park as a seven-acre community space on a hillside overlooking the south side of Eagle Harbor. The district explicitly connects the park to the Cold War Project Nike system and notes that the radar towers and missiles are gone, while the site remains a layered piece of Bainbridge Island history.

Strawberry Hill Park became the more visibly Nike-associated public reuse. The current tourism/park description identifies Strawberry Hill Park at 7666 High School Road NE and states that the 25-acre former Nike site was transferred to the Bainbridge Island Park District by the federal government in 1966. It also notes two important surviving reuse elements: the former barracks building became Park District administrative offices, and the former missile assembly building became an indoor mini-gym. Bainbridge Island Metro Park & Recreation District facility listings likewise describe the Strawberry Hill Mini Gym as a former missile assembly facility.

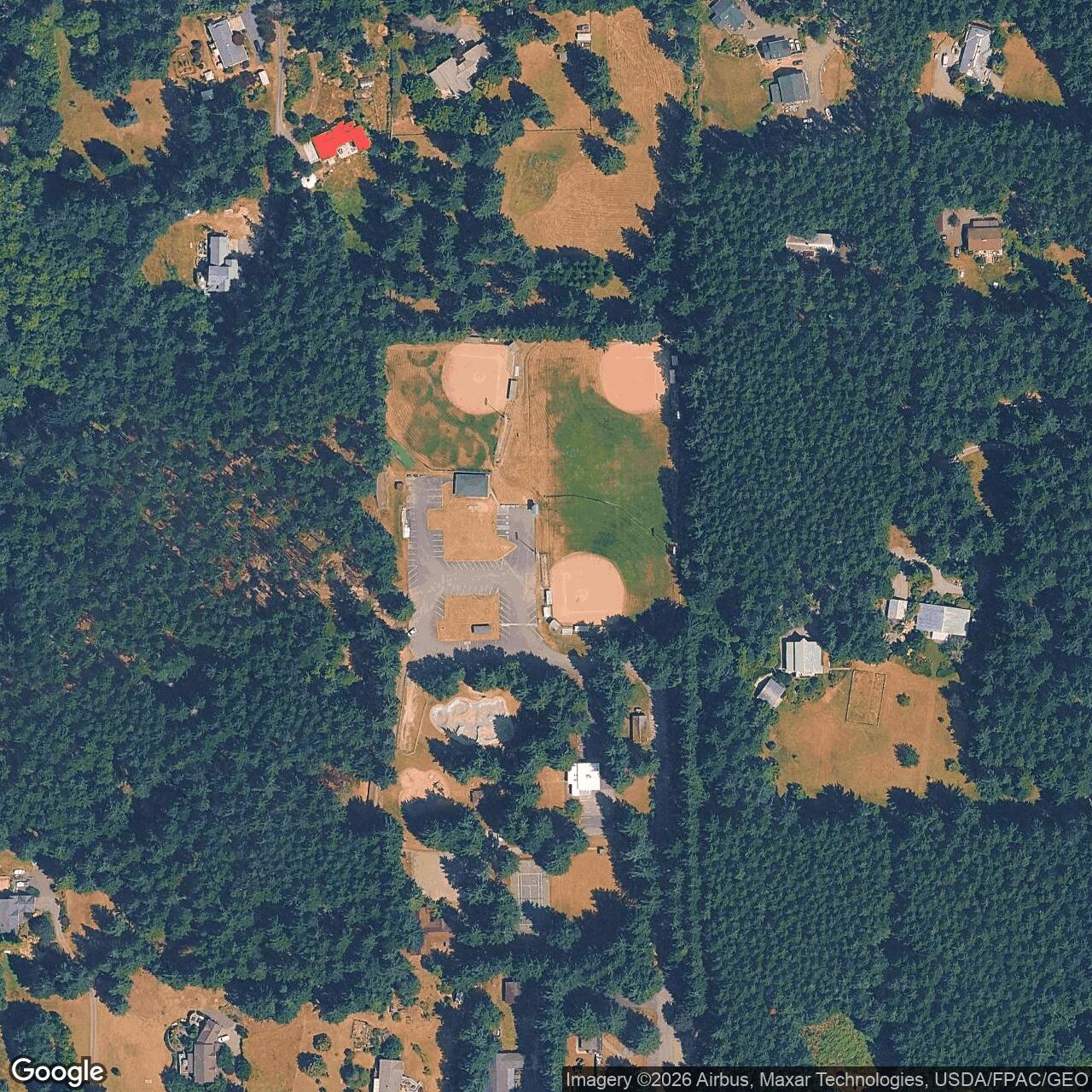

The launch area no longer functions as a preserved missile-launch installation. Mark Morgan / Ed Thelen notes report that the launch area was leveled and covered and used as playing fields, with only a few buildings remaining at the time of the 1989 field note. Modern Strawberry Hill Park is a public recreation area with ballfields, a dog park, tennis court, skatepark, playground, picnic shelter, indoor facilities, and other community amenities. In 2024, the Bainbridge Island Parks & Trails Foundation described Strawberry Hill as one of the island's oldest parks, established in 1966 on the former site of a Nike missile installation and before that a historic agricultural district associated with Japanese American and Filipino American farmers. The foundation also reported recent additions that expanded Strawberry Hill Park to 38 acres.

Current Status

S-82 is closed and inactive as a military installation.

The former IFC/control area is now associated with Eagledale Park on Rose Avenue NE. Bainbridge Island Metro Park & Recreation District describes Eagledale Park as a community park with picnic shelter, tennis courts, sand volleyball court, playground, labyrinth walk, off-leash dog park, pottery studio, and views from one of the higher points on Bainbridge Island.

The former launch area is now associated with Strawberry Hill Park at 7666 High School Road NE. Strawberry Hill Park retains some functional reuse of former military buildings: the former barracks building has been used as Park District administrative offices, and the former missile assembly building is used as an indoor mini-gym. The Nike launch magazines and launcher features should not be described as intact or preserved; the launch area was leveled/covered and adapted to recreation fields and community facilities.

Chronology

• 1949: The Soviet Union detonated its first atomic bomb, increasing U.S. concern about nuclear-armed bomber attack and continental air defense.
• 1950: The Korean War intensified U.S. military mobilization and accelerated guided missile development and air-defense planning.
• 1951: The Nike missile system achieved its first successful missile-test milestone, helping move the program toward operational deployment.
• 1954: Army surveyors selected Seattle-area Nike locations; the Army used public displays at Fort Lawton and Mount Rainier Ordnance Depot to introduce the missile system to the region.
• 1954-1955: The former S-82 control-area property was obtained for Army use through a combination of condemnation, purchase, and no-area/no-cost licenses.
• 1955-1956: The former S-82 launch-area property was obtained for Army use through a combination of condemnation, purchase, and no-area/no-cost licenses.
• 1956-1958: Seattle-based Nike Ajax batteries earned a strong reputation in annual service practice, winning the ARADCOM Commander's Trophy in 1956, 1957, and 1958.
• 1958: S-82 active beginning in 1958.
• 1958-1960: Nike Hercules conversion elsewhere in the Seattle Defense Area began reducing the number of Ajax batteries needed.
• November 1960: S-82 closed as an Ajax-only Bainbridge Island / Winslow Nike site.
• 1966: Strawberry Hill Park was established from the former Nike launch site, according to later park-history descriptions; park sources state the 25-acre former Nike site was transferred to the Bainbridge Island Park District by the federal government in 1966.
• 1974: Bainbridge Island Parks took over the former control and launch areas; the control area became Eagledale Park and the launch area became Strawberry Hill Park.
• 1987-1988: Ecology's 2021 summary records removal of two 20-foot concrete towers, wooden pilings, concrete walkways and stairs at the former control area, and removal of certain concrete, retaining-wall, pipe, and debris features at the former launch area.
• 1989: Field notes described the S-82 control site as partially intact at Eagledale Park and the launch site as Strawberry Hill Park, with the launcher area leveled and covered for playing fields.
• 2024: Bainbridge Island Parks & Trails Foundation described Strawberry Hill as one of the island's oldest parks, established in 1966 on the former Nike missile installation, and noted recent land additions expanding the park.
• 2025: Bainbridge Island Metro Park & Recreation District highlighted Eagledale Park's Cold War Project Nike roots and its current community park uses.
