Figure 1: Titan I Underground Complex Diagram

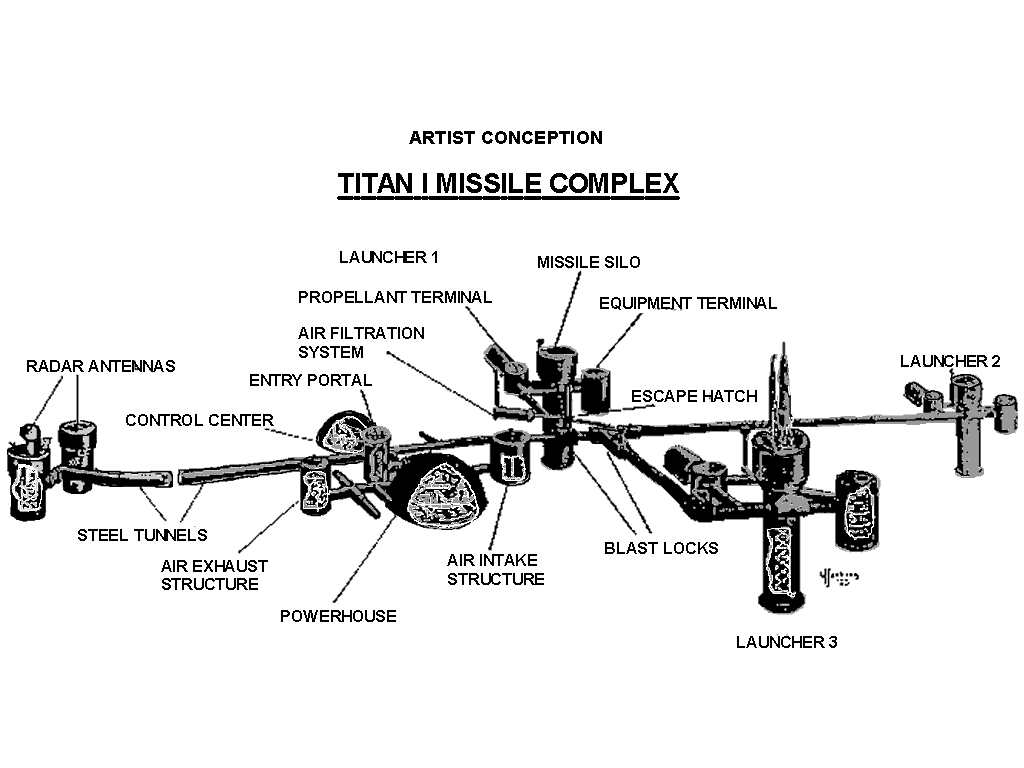

Figure 2: Diagram Showing Titan I Underground Complex Side View

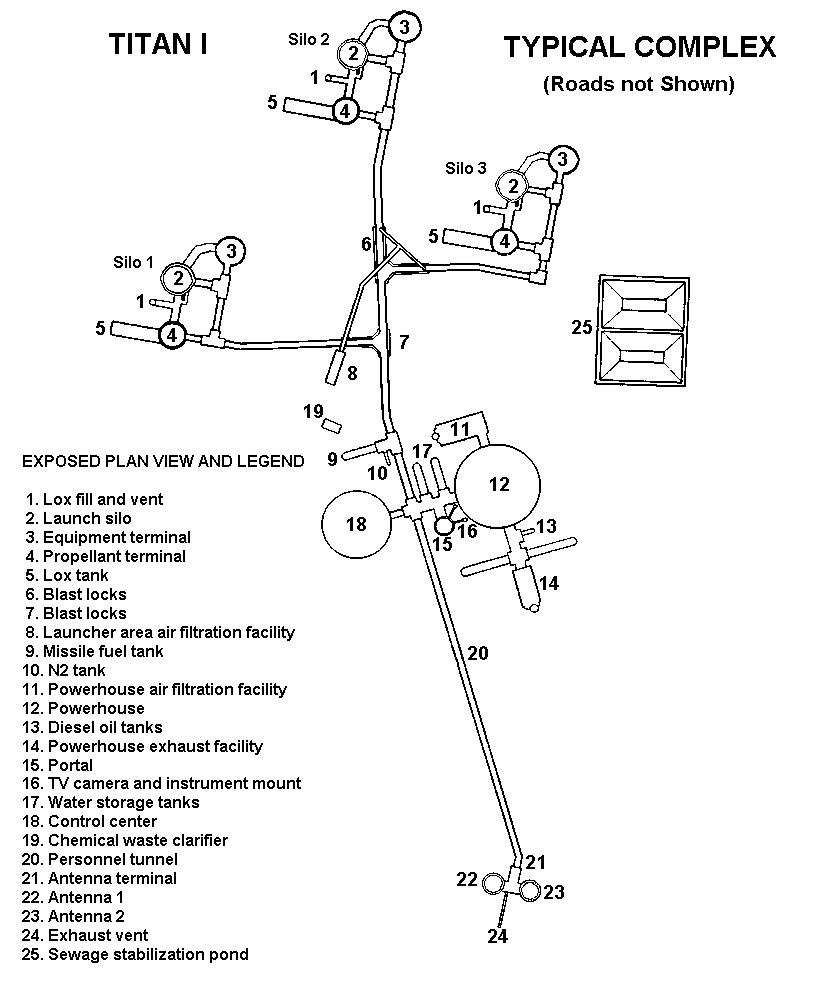

Source: Figure 3: Line Drawing of Titan I Missile Complex Showing Component Locations

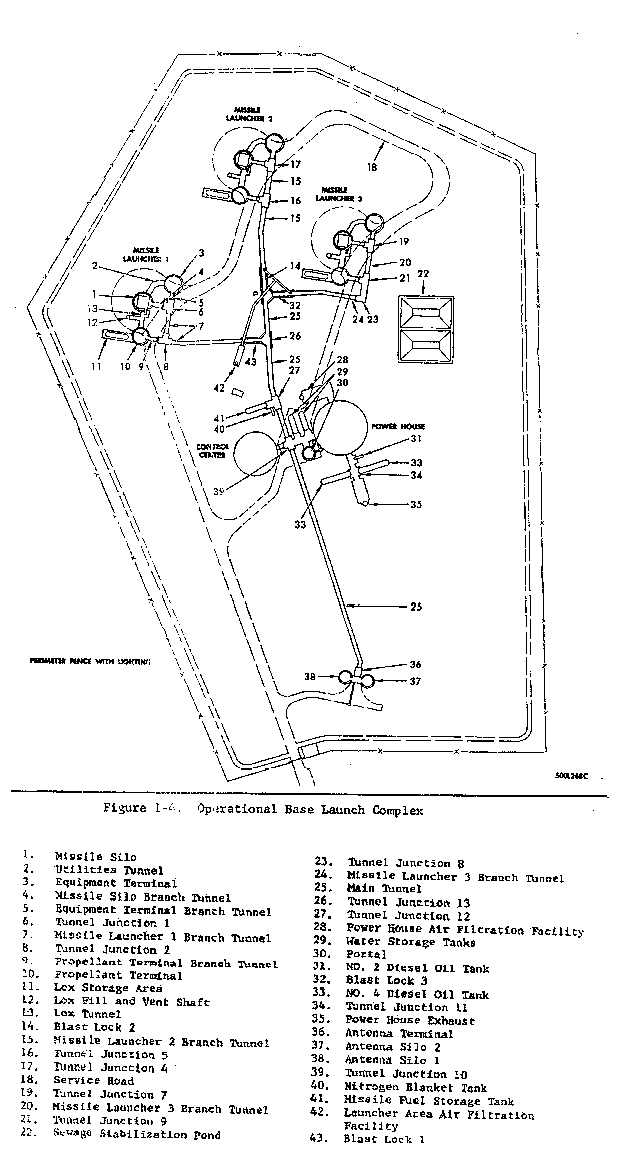

Figure 4: Titan I Missile Site Layout Diagram

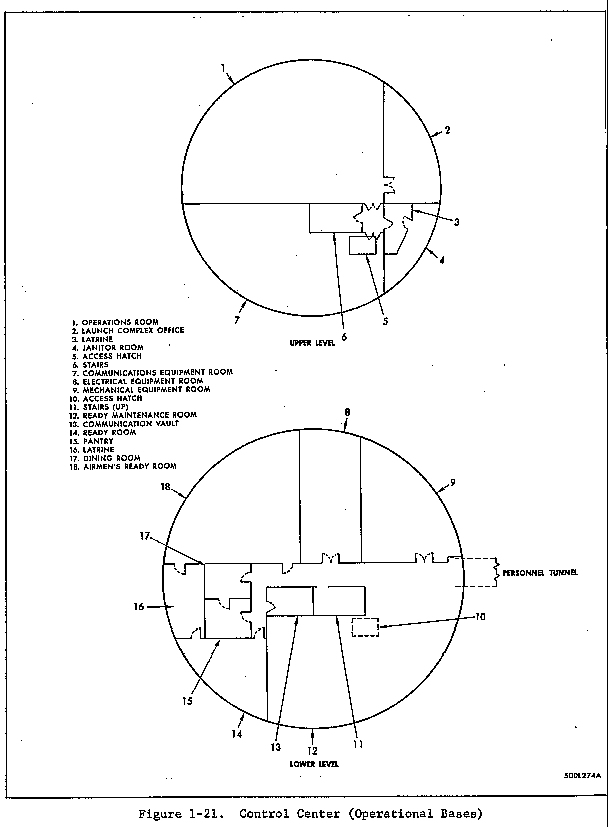

Figure 5: Titan I Missile Site Control Center Diagram

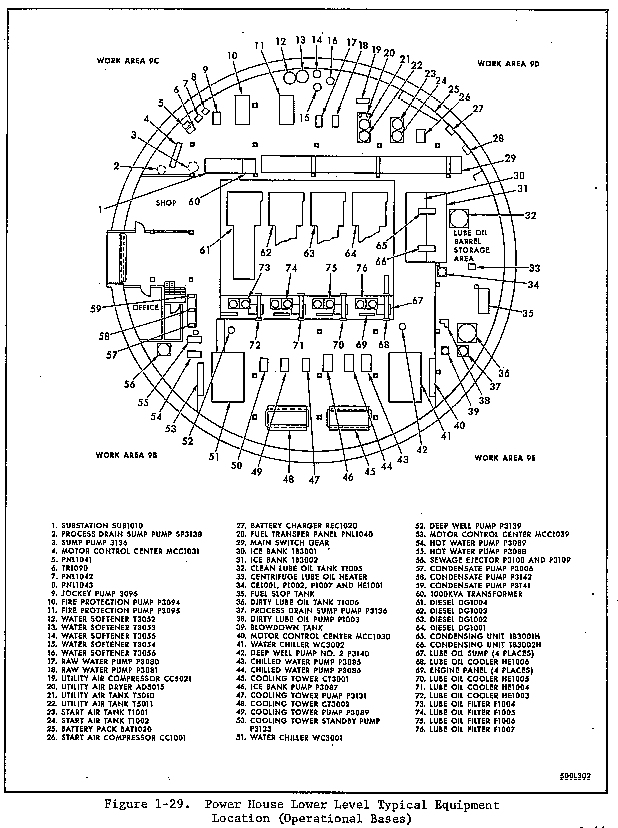

Figure 6: Titan I Missile Site Power House Lower Level Diagram

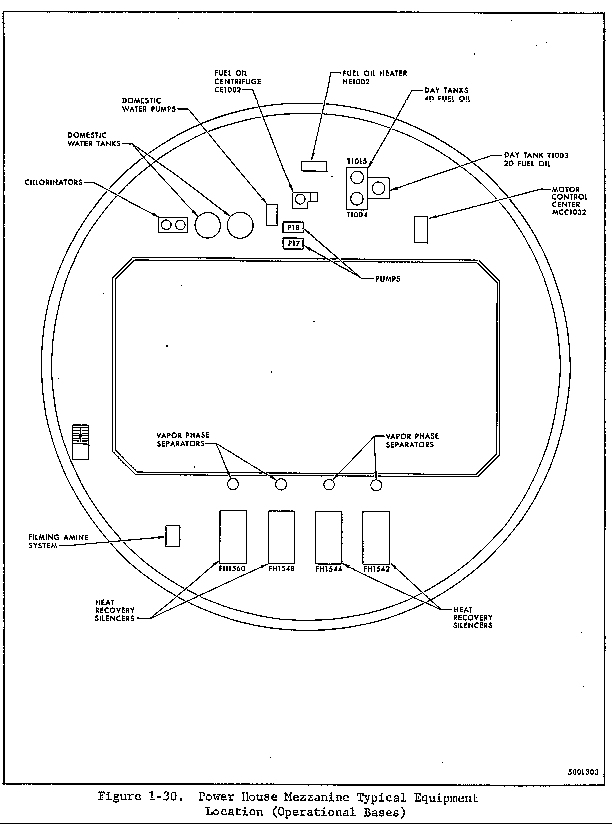

Figure 7: Titan I Missile Site Power House Mezzanine Diagram

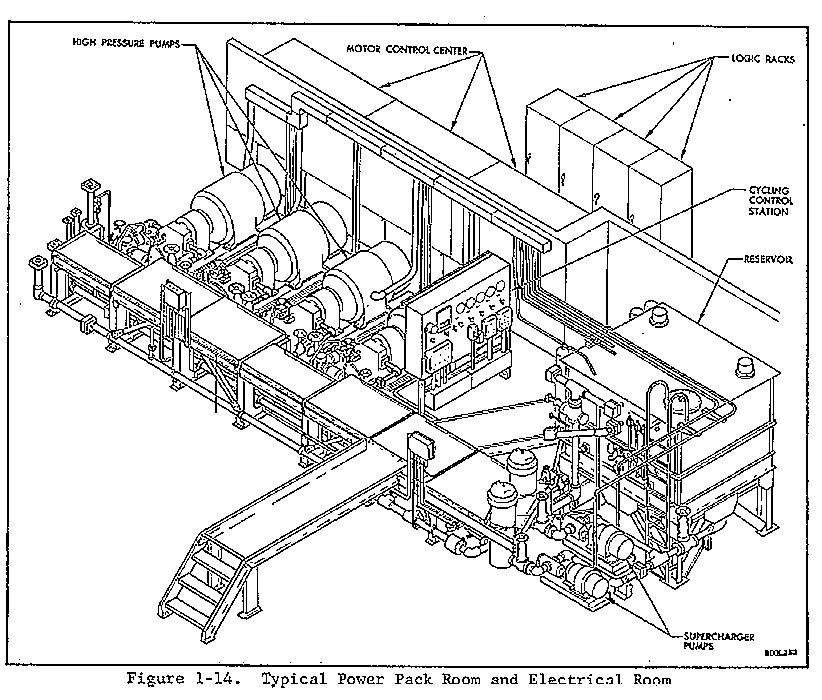

Figure 8: Titan I Missile Site Power Pack and Electrical Room Diagram

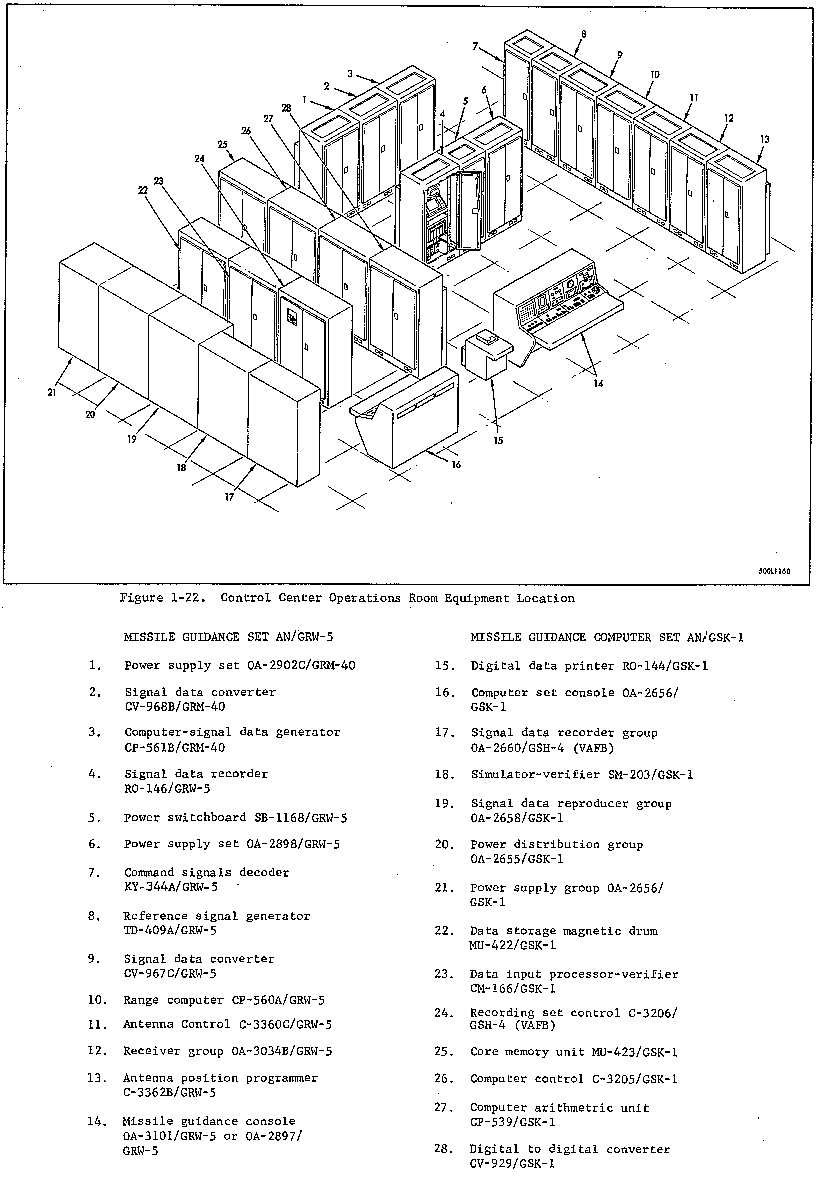

Figure 9: Titan I Missile Site Control Center Operations Room Diagram

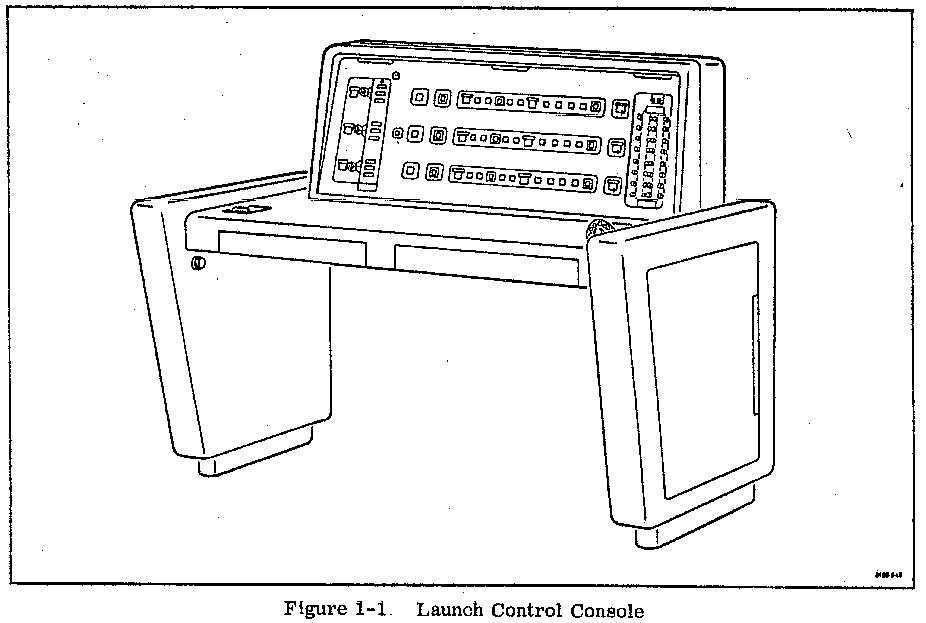

Figure 10: Titan I Missile Site Launch Control Console Diagram

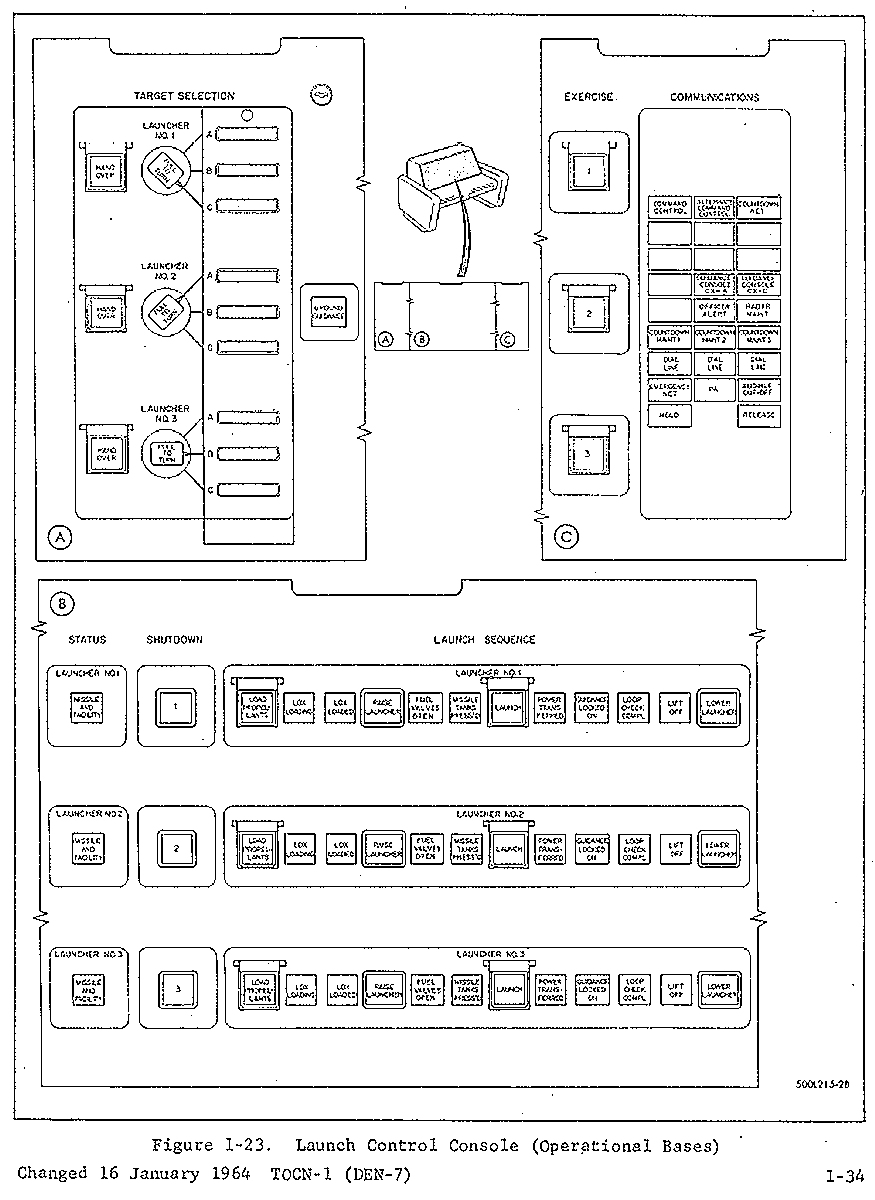

Figure 11: Titan I Missile Site Launch Control Console Detailed Diagram

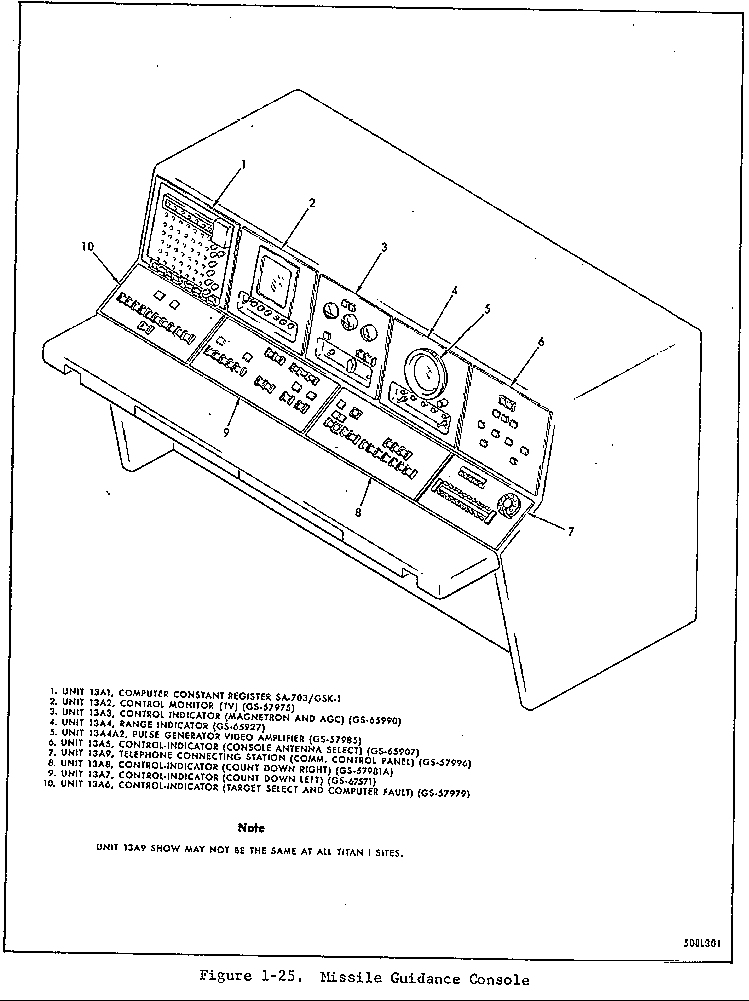

Figure 12: Titan I Missile Site Missile Guidance Console Diagram

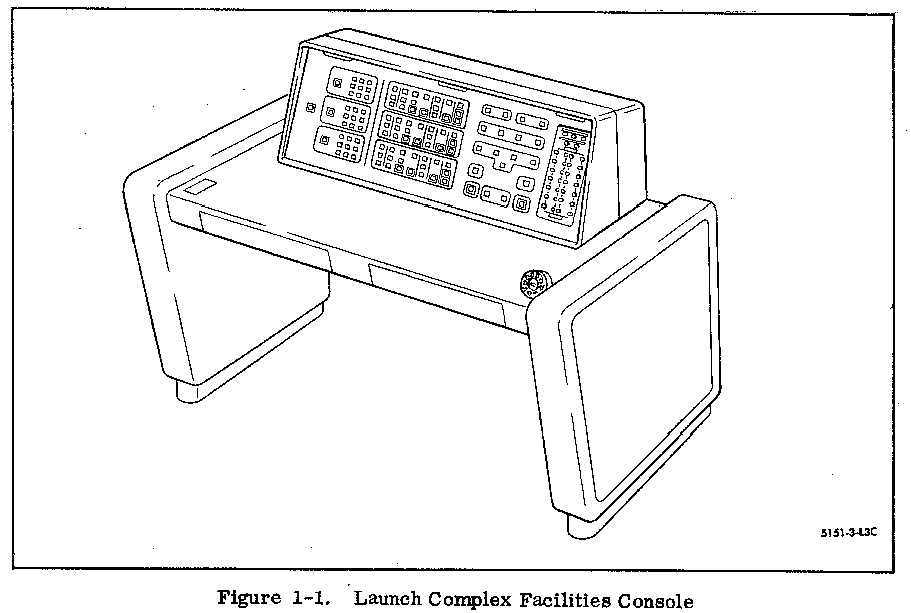

Figure 13: Titan I Missile Site Launch Facilities Console Diagram

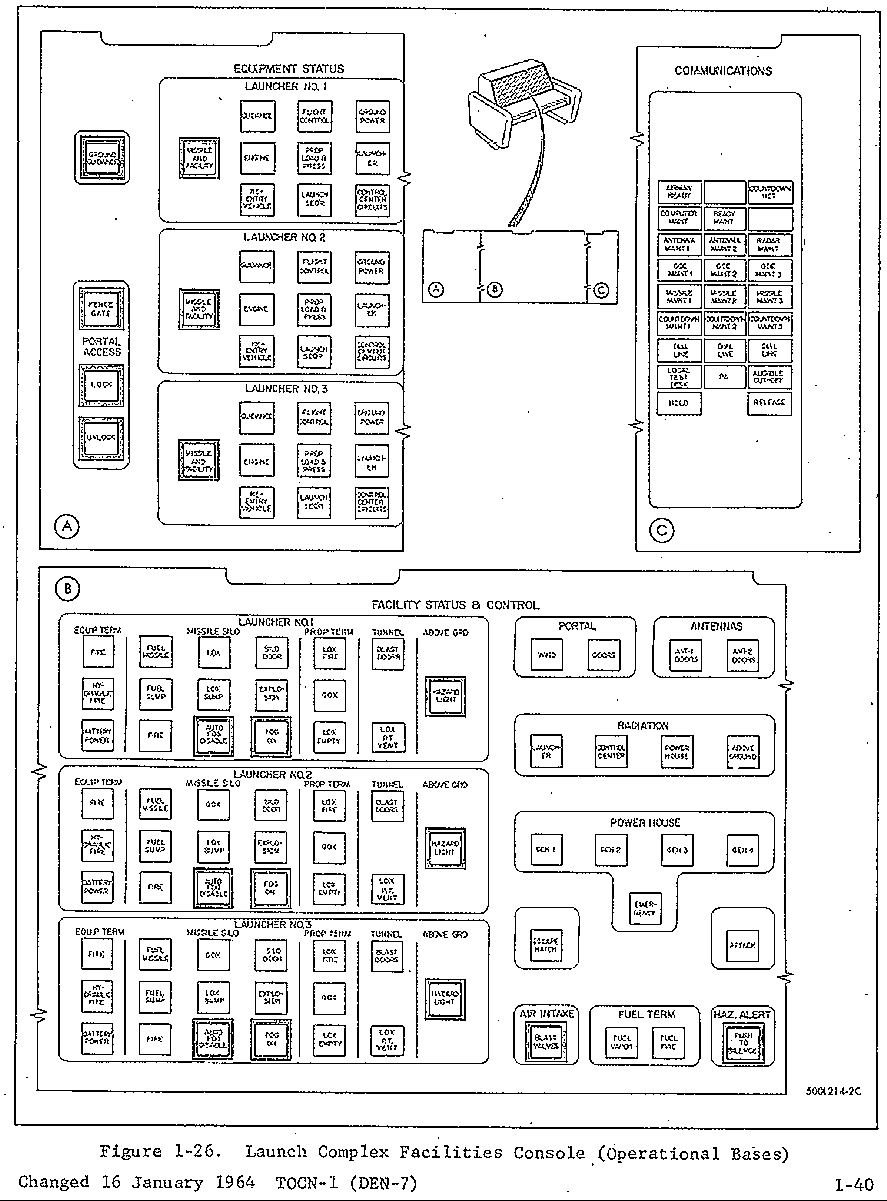

Figure 14: Titan I Missile Site Launch Facilities Console Details Diagram

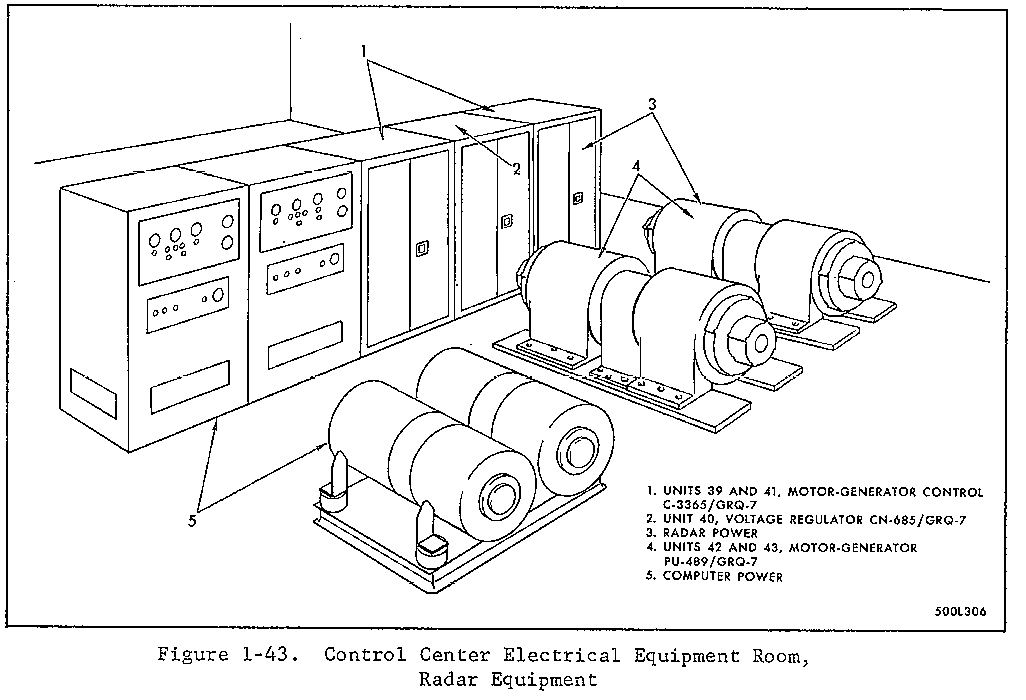

Figure 15: Titan I Missile Site Control Center Electrical Equipment Room and Radar Equipment Diagram

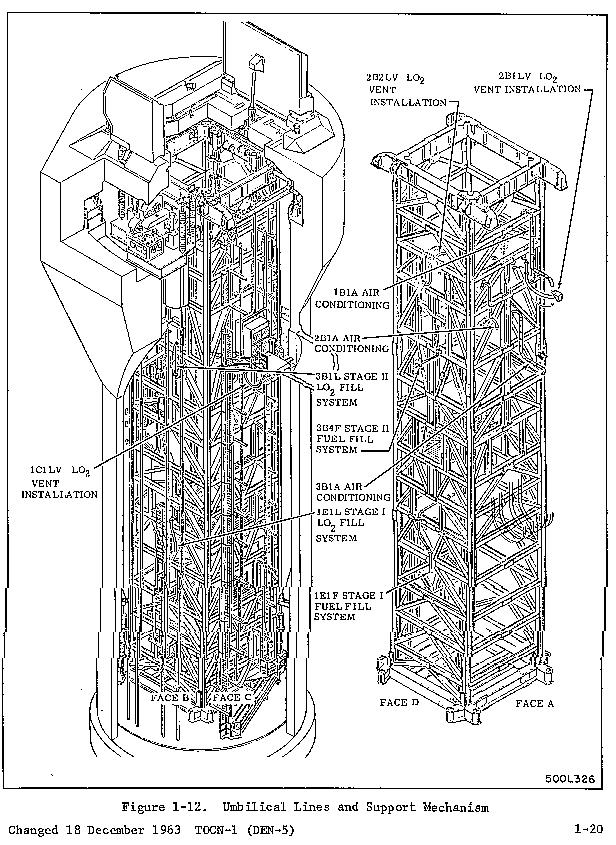

Figure 16: Titan I Missile Site Silo and Crib Diagram

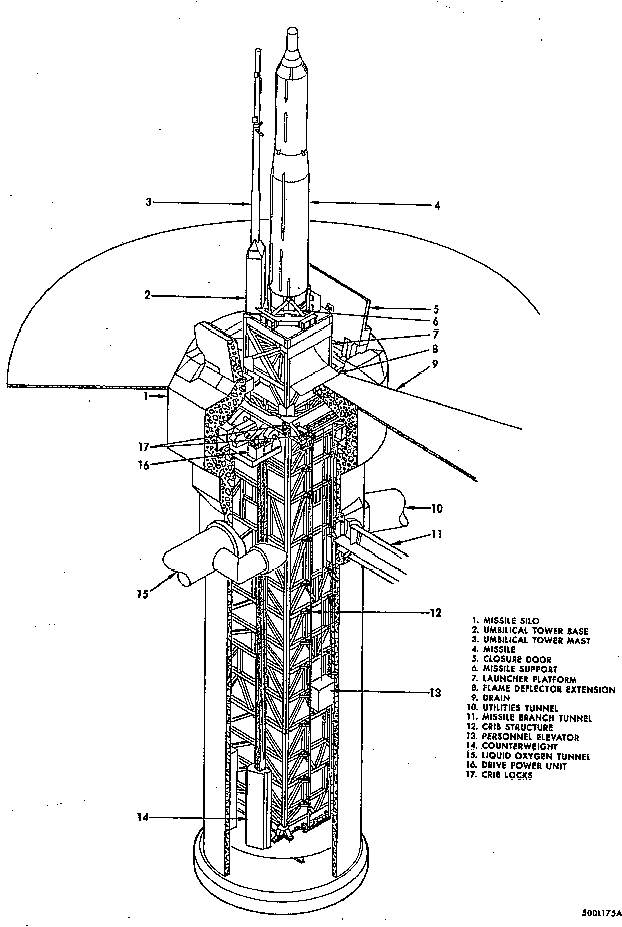

Figure 17: Titan I Missile Site Silo and Elevated Missile Diagram

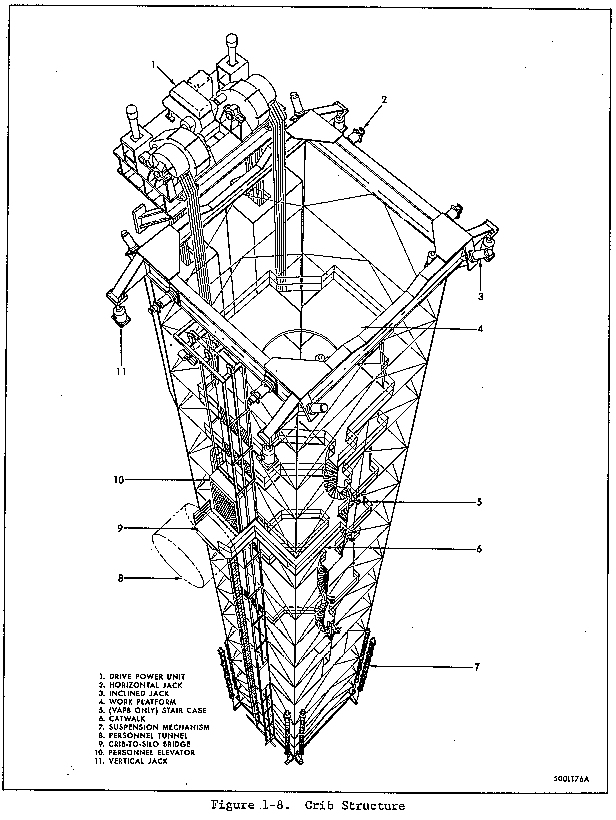

Figure 18: Titan I Missile Site Silo Crib Structure Diagram

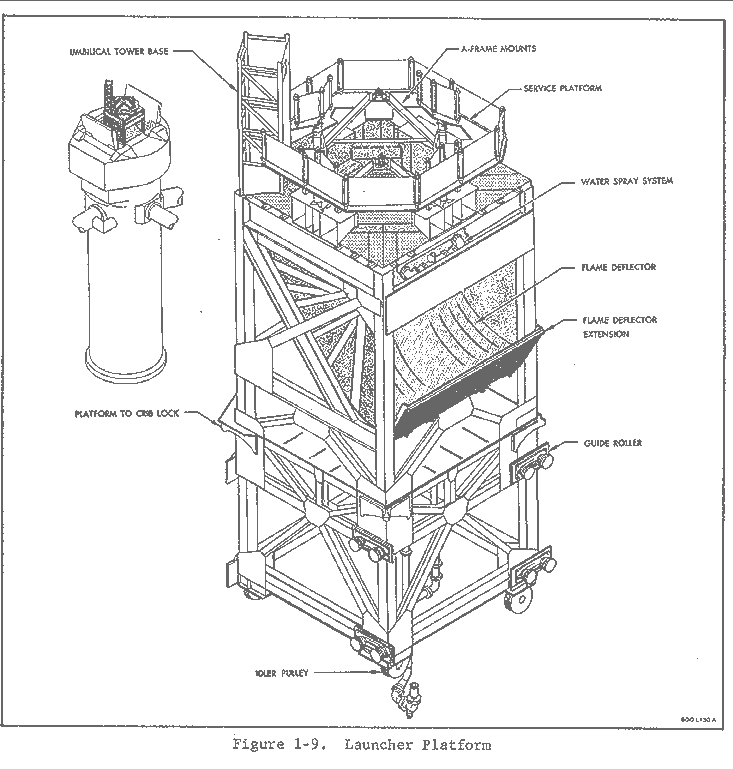

Figure 19: Titan I Missile Site Launch Platform Diagram

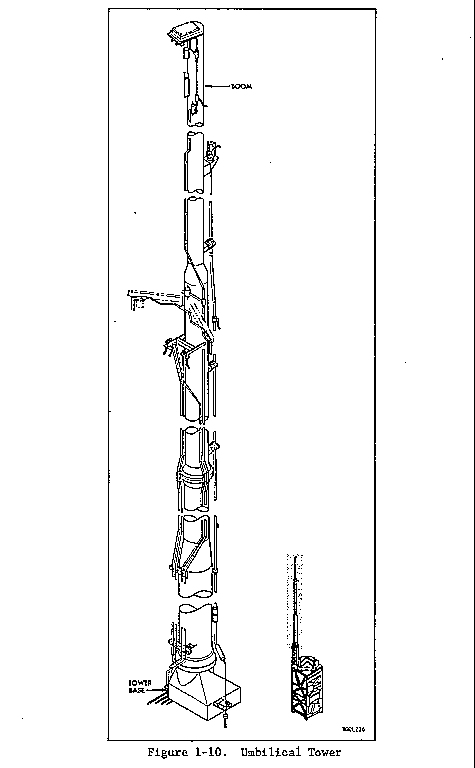

Figure 20: Titan I Missile Site Umbilical Tower Diagram

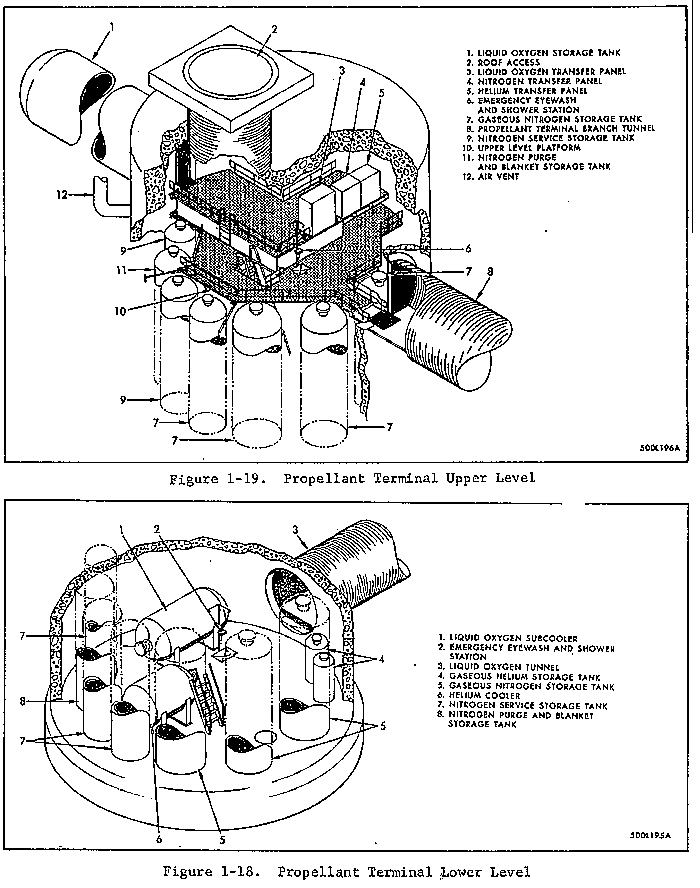

Figure 21: Titan I Missile Site Propellant Terminal Diagram

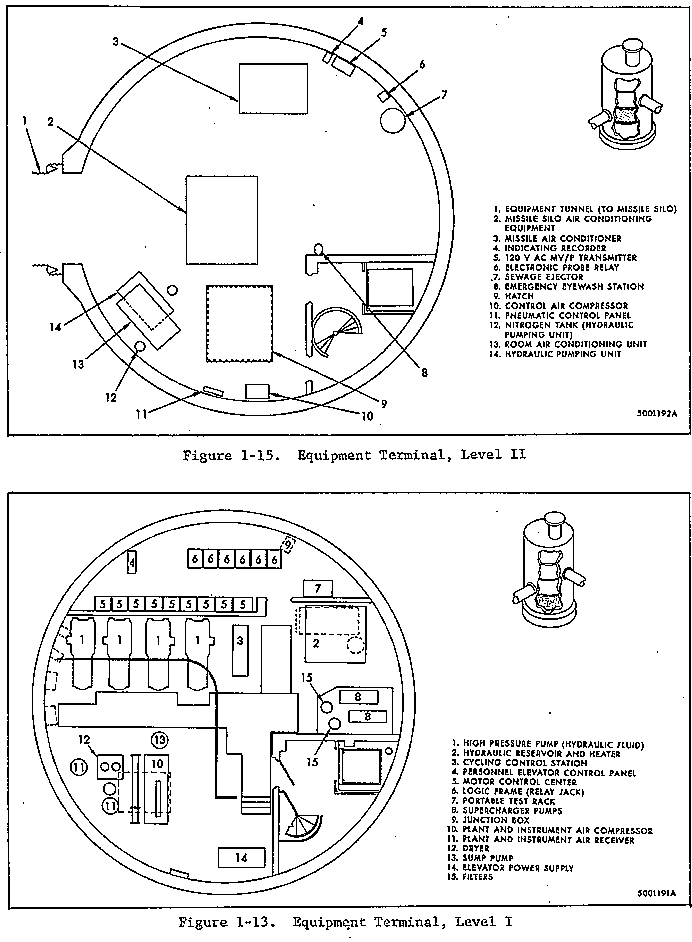

Figure 22: Titan I Missile Site Equipment Terminal Diagram

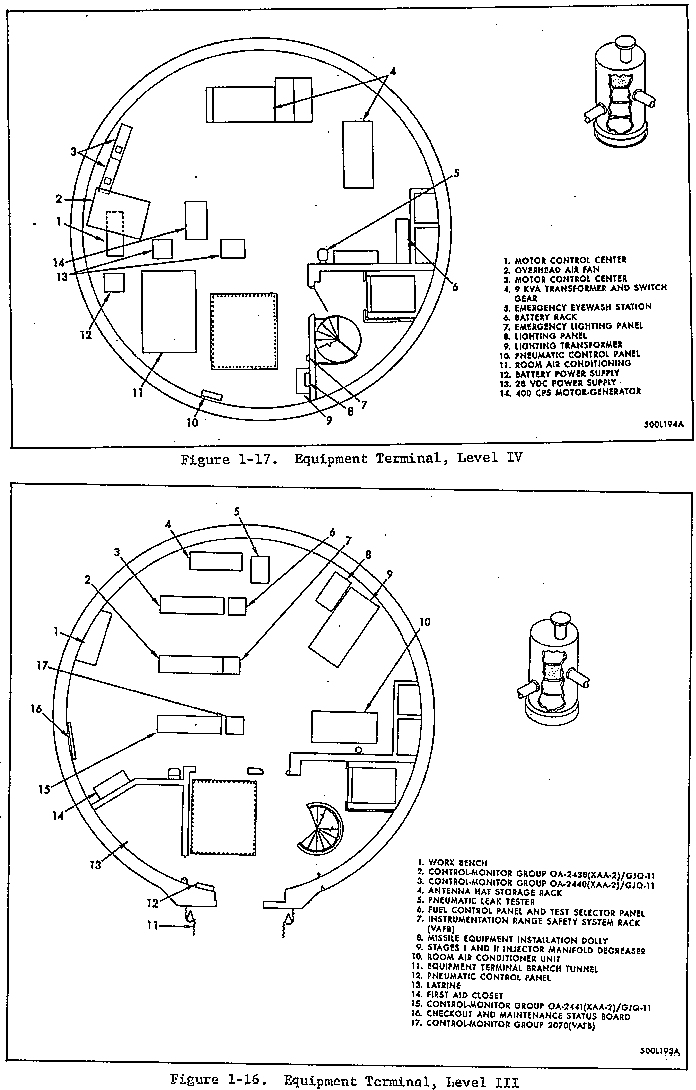

Figure 23: Titan I Missile Site Equipment Terminal Level 3 & 4 Diagram

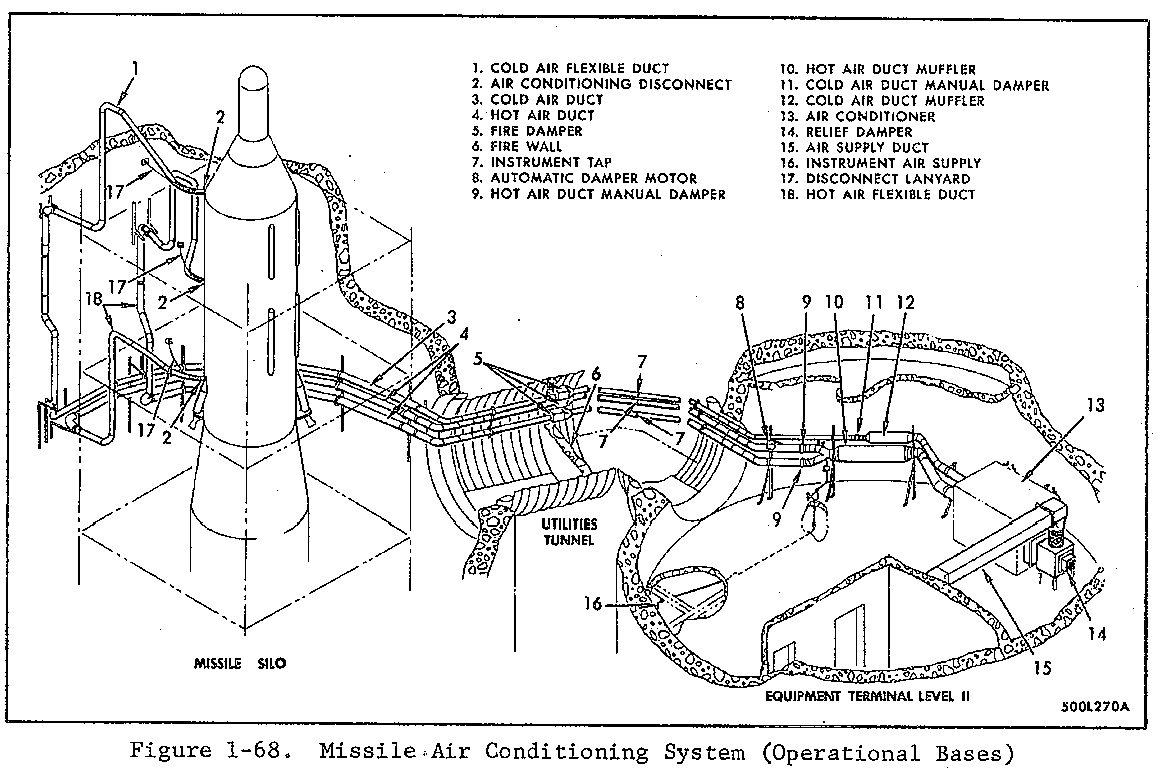

Figure 24: Titan I Missile Site Missile Air Conditioning System Diagram

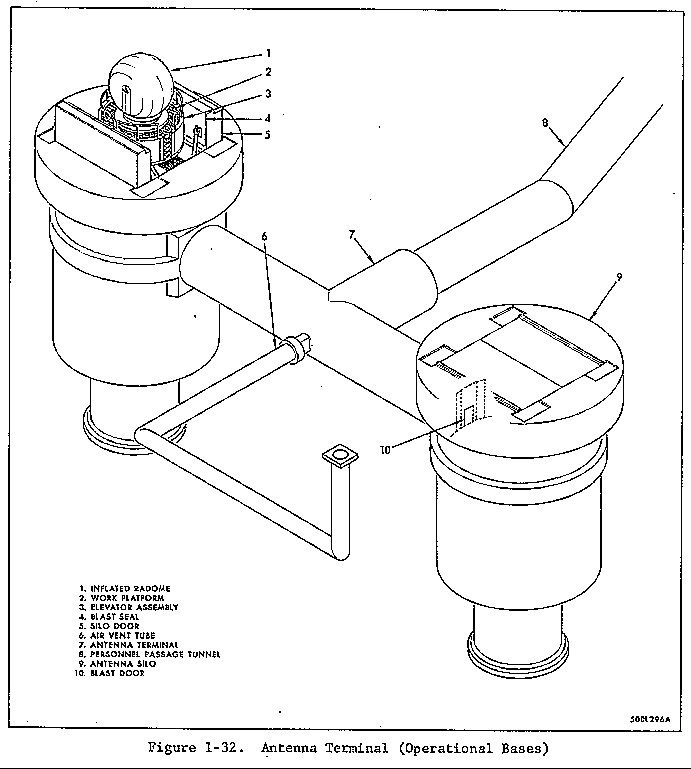

Figure 25: Titan I Missile Site Antenna Terminal Diagram

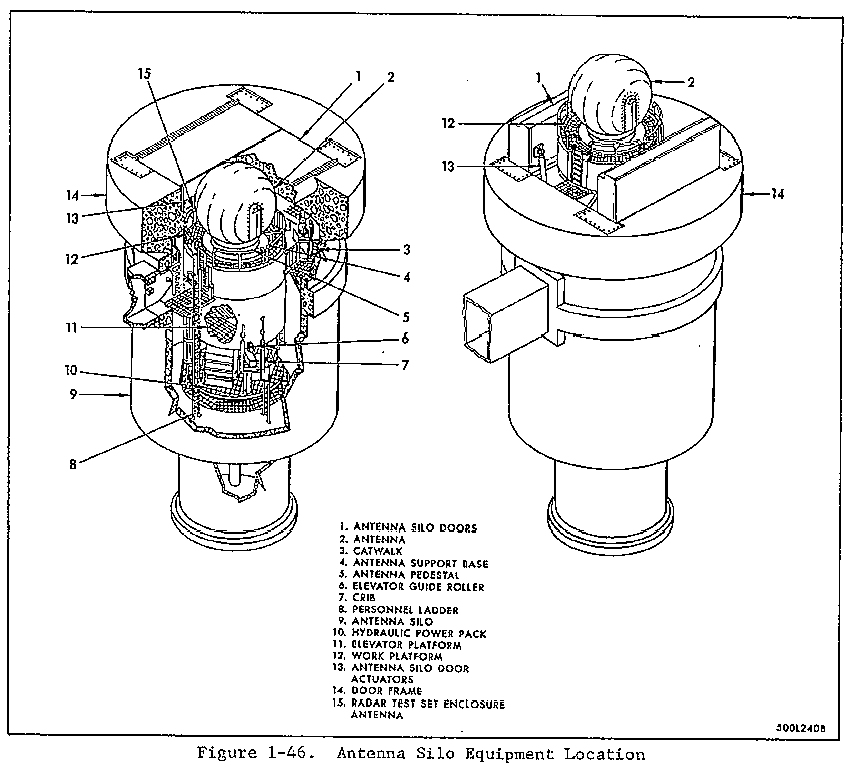

Figure 26: Titan I Missile Site Antenna Silo Equipment Diagram

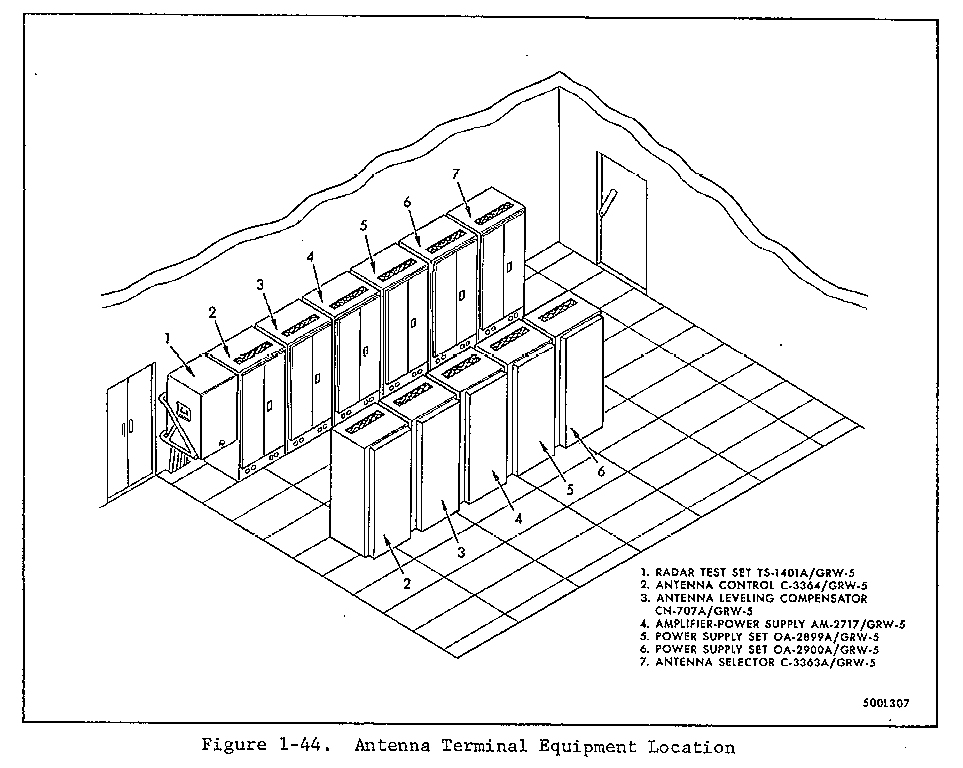

Figure 27: Titan I Missile Site Antenna Terminal Equipment Diagram
