Atlas E Site 548-8 Missile Silo, Delia / Saint Marys area Kansas

Atlas E Site 548-8 was a single-missile SM-65E Atlas intercontinental ballistic missile launch complex in Jackson County, Kansas, near Delia and in the broader Saint Marys / Topeka missile-field area. It was one of nine Atlas E coffin-launcher facilities operated from the Forbes Air Force Base missile field near Topeka by the 548th Strategic Missile Squadron. EPA identifies the environmental/property record as FORBES (EX) ATLAS FAC S-8, EPA ID KSN000703134, at 4900 110th Rd., Delia, Kansas, in Jackson County.

The parent base was Forbes Air Force Base. The operating unit was the 548th Strategic Missile Squadron. Public unit-history and base-history sources place the squadron under Strategic Air Command and the 21st Air Division / 21st Strategic Aerospace Division during its Forbes Atlas E service, with Forbes associated in this period with the 40th Bombardment Wing and later the 40th Strategic Aerospace Wing. Atlas E sites were not Minuteman-style unmanned Launch Facilities controlled from a separate Launch Control Center. Each Atlas E site was a locally crewed launch complex with its own launch-control room, crew-support spaces, power plant, communications equipment, security perimeter, propellant systems, and single missile launcher.

The site is inactive and decommissioned. It is no longer an active missile installation. The Forbes Atlas E program entered its operational period in 1961, and the 548th Strategic Missile Squadron stood down in March 1965 as part of the wider phaseout of the vulnerable, liquid-fueled Atlas and Titan I generation of ICBMs. After the Air Force removed the missile and salvageable equipment, the former launcher passed through surplus-property disposal rather than preservation.

Location, Landscape, and Site Description

Site 548-8 lies in rural Jackson County, Kansas, east of Delia and northwest of Topeka. The immediate setting is agricultural and rural-residential, with the former missile complex reached from local county roads. EPA lists the property at 4900 110th Rd., Delia, Kansas.

The Forbes Atlas E field was arranged in a ring of dispersed launch sites around Forbes Air Force Base. These launchers were not meant to defend the base. They were offensive strategic-deterrent weapons, located around the base so that a single enemy strike, accident, or local infrastructure failure would be less likely to disable the entire missile squadron. At the same time, the sites had to remain close enough to Forbes for crew movement, security response, communications, maintenance convoys, missile transporters, and propellant support. Site 548-8 formed the Delia member of that ring, between the Wamego and Holton portions of the Forbes field.

Site 548-8 was an Atlas E coffin-launcher complex. The missile was stored horizontally in a semi-hardened underground concrete launcher rather than vertically in a deep Atlas F silo. The "coffin" was a long rectangular launch bay with a massive door or roof structure at ground level. In a launch sequence, the door would be opened, the missile raised to vertical, and the missile fueled before launch. The site included the missile bay, access tunnel, launch-control and crew areas, generator and equipment spaces, propellant-support systems, communications equipment, perimeter fencing, hardstand and road surfaces, and surface utility features.

The site's rural terrain was important to its function. The launcher needed open land for security separation, blast and safety clearances, and a transport route capable of handling large missile-support vehicles. The location also had to accommodate construction of a large underground reinforced-concrete structure, fuel and oxidizer systems, and communications links back to squadron headquarters at Forbes. Public imagery and historical-location photographs show that major surface geometry remained visible after decommissioning, including access roads, concrete pads, and the launcher-area footprint, but the site is not maintained as a public historic attraction.

Strategic and Cold War Context

Atlas E Site 548-8 existed because the United States was trying to establish a credible operational ICBM deterrent quickly during the early Cold War. The Atlas family was the first operational U.S. intercontinental ballistic missile family. It represented the transition from an Air Force deterrent dominated by manned bombers toward a force that also included long-range missiles capable of striking targets from dispersed launch facilities in the continental United States.

The Atlas E was a transitional system. It was more advanced than the earlier Atlas D because Atlas E used individual dispersed launch complexes and inertial guidance rather than the three-missile Atlas D complex pattern and earlier guidance arrangements. The National Park Service summarizes Atlas E as similar to Atlas D but deployed in individual belowground coffin launchers with inertial guidance and an approximately fifteen-minute launch response time. Forbes was one of the four operational Atlas E fields, along with Fairchild, F.E. Warren, and Vandenberg's operational/test role.

The Forbes missile field also shows how rapidly early ICBM basing doctrine evolved. In 1958 and early 1959, the plan for Forbes still contemplated three sites with three missiles each. In February 1959, the Air Force changed the plan so that each missile would be placed at its own launch site. This produced the nine single-missile Atlas E sites associated with Valley Falls / Rock Creek, Worden, Waverly, Burlingame, Bushong, Keene / Dover, Wamego, Delia, and Holton.

The system's strategic value came with serious operational burdens. Atlas E used liquid oxygen and RP-1 kerosene. Liquid oxygen was cryogenic and could not be stored indefinitely in the missile the way solid propellant could be stored in later Minuteman missiles. The Atlas airframe was also pressure-stabilized; the National Park Service explains that the thin stainless-steel missile shell required internal pressure to retain its shape on the ground. These characteristics made Atlas powerful but maintenance-intensive. They also made it vulnerable compared with later solid-fueled missiles, which could remain on alert for long periods with much shorter launch preparation times.

Construction and Activation

The Forbes Atlas E construction program began in the national rush to field operational ICBM sites in the late 1950s and early 1960s. Topeka learned in October 1958 that Forbes Air Force Base would support Atlas E missile sites in the surrounding area. The Corps of Engineers Kansas City District managed construction of the nine horizontal-launcher "coffins" for the field.

Construction officially began on June 9, 1959, when Kansas Governor George Docking drove a silver nail into a construction form. The early plan still reflected the three-sites / three-missiles pattern, but the Air Force soon shifted to nine separate one-missile launch complexes. This change had major land-acquisition, road-building, communications, and construction consequences because nine dispersed rural locations had to be acquired, supplied, connected, and completed instead of three larger shared sites.

The Forbes construction effort was complicated. Public histories describe two principal construction groupings, hundreds of modifications during construction, labor-management disputes, late or defective propellant-loading components, lost-time accidents, and the challenge of building large reinforced-concrete launch facilities in rural Kansas under intense national-security pressure. The 190th Air Refueling Wing history states that prefabricated Blaw-Knox propellant-loading components were supposed to arrive on skids, but they often arrived late and testing revealed defects that had to be corrected. It also notes 22 work stoppages, including a longer October-November 1960 dispute involving hoisting engineers and electrical workers.

The first Atlas missile for the Forbes field arrived at Forbes Air Force Base on January 24, 1961. By October 1961, all nine Forbes Atlas E sites had their Atlas E missiles, and the Forbes sites were reported as completed three weeks ahead of schedule. On October 16, 1961, Air Force Ballistic Missile Activation Chief Major General Gerrity turned over operational control of the sites to Second Air Force Commander Lieutenant General John D. Ryan.

Missile System and Technical Role

Site 548-8 was built for the SM-65E Atlas, also known as Atlas E. It was a first-generation U.S. ICBM using liquid oxygen as oxidizer and RP-1 kerosene as fuel. Unlike a later Minuteman launch facility, which housed a solid-fueled missile on continuous remote alert, an Atlas E site required local crew presence, liquid-oxygen handling, missile erection, pressurization, fueling, and launch-sequence operations from within the complex.

The Atlas E launcher at Delia was a horizontal coffin launcher. The missile normally lay in the protected launcher bay. The 548th SMS historical site explains the operational concept in plain terms: the missile was kept in a horizontal position; to launch, a heavy overhead door was rolled back; the missile was raised to a vertical position; and once upright, it was fueled with RP-1 and liquid oxygen before final launch preparation. This arrangement gave some blast and weather protection but did not provide the vertical, belowground launch-on-command posture of later silo systems.

The missile's nuclear payload was carried in a Mark 4 reentry vehicle. The Smithsonian National Air and Space Museum identifies the Mark 4 as a reentry vehicle used on Titan I and Atlas E/F ICBMs in the early 1960s and states that it carried a W-38 nuclear warhead with a yield of about 3.75 megatons.

The site's technical role was more than storage. It had to keep the missile pressurized and ready, maintain launch-control logic, maintain communications with squadron headquarters and Strategic Air Command channels, preserve fueling and cryogenic support equipment, and support security and maintenance teams. The presence of two large on-site generators was typical of the Forbes Atlas E launchers. Power independence was essential because the missile site had to remain functional even if local utilities failed during a crisis.

Operational History

Atlas E Site 548-8 entered service during the brief operational life of the Forbes Atlas E field. The 548th Strategic Missile Squadron was organized at Forbes Air Force Base on July 1, 1960. The first Atlas missile arrived at Forbes on January 24, 1961, and by October 1961 all nine Forbes sites had missiles. The 548th SMS historical site states that the squadron's sites were manned 24 hours a day, 365 days a year during the squadron's active period, and that during the Cuban Missile Crisis all 548th sites were at a high alert posture.

An Atlas E launch crew at Site 548-8 would have served within the launch complex itself rather than at a remote Minuteman-style launch-control center. The crew's work included constant monitoring of missile status, communications, security, power, environmental systems, and launch readiness. The site also required routine visits and work by maintenance, propellant-handling, communications, civil-engineering, and security personnel. Because Atlas E relied on cryogenic liquid oxygen and a pressure-stabilized missile, preventive maintenance and system checks were central to keeping the weapon operational.

The operational rhythm at Delia would have included crew changeovers, vehicle movements from Forbes, perimeter security checks, communications tests, generator and electrical-system checks, missile inspections, launcher-door and erection-equipment maintenance, and periodic exercises. Public Forbes histories describe the launch response time of Atlas E as roughly fifteen minutes, but that figure represented a demanding sequence involving crew coordination, launch authorization procedures, missile erection, liquid-oxygen loading, final system checks, and launch-control actions.

During the Cuban Missile Crisis in October 1962, the Forbes field was part of the wider SAC alert posture. Public squadron-history summaries say that all 548th sites were at a high level of alert during the crisis and were ready to launch if ordered. That is a squadron-level statement rather than a unique Site 548-8 incident, but it is directly relevant to the Delia site because Site 548-8 was one of the nine squadron launchers that made up the Forbes Atlas E alert force.

Deactivation and Disposal

Atlas E Site 548-8 left service because the first-generation Atlas E system became obsolete very quickly. By 1964, the United States had deployed or was rapidly deploying more survivable and more maintainable ICBMs. Minuteman brought solid-fueled, silo-based missiles with much simpler alert operations, while Titan II added a different storable-propellant heavy ICBM capability. Public histories state that Secretary of Defense Robert McNamara's May 1964 directive accelerated decommissioning of Atlas and Titan I missile bases.

The Forbes phaseout was compressed. Flint Hills Special, drawing on Air Force reporting, states that the first Forbes missile went off alert on January 4, 1965, the last missile in the squadron's arsenal went off alert on January 28, 1965, and the last missile shipped from Forbes to Norton Air Force Base on February 8, 1965. The same account states that all 149 Atlas and Titan missiles affected by the wider transport phaseout were moved by ground to Norton Air Force Base without accidents by April 29, 1965. The 548th Strategic Missile Squadron stood down on March 25, 1965, while the Site 8 page records Site 548-8 as decommissioned on April 12, 1965.

The decommissioning process involved several separate actions. The missile was removed from alert. The missile and nuclear warhead/reentry vehicle were removed from the site and moved through Air Force disposition channels. Radio, electronic, and support equipment with remaining value was removed. Flint Hills Special reports that the Air Force removed the large 100-kilowatt generators from Atlas E, Atlas F, and Titan I sites and that many of those generators were refurbished and shipped to Department of Defense installations in Southeast Asia or placed in storage.

After the missile and salvageable equipment were removed, the sites were evaluated for possible government reuse or disposal. Some Forbes sites were assigned to educational or public users, but Site 548-8 was not among those initial special transfers. Flint Hills Special states that the remaining sites were offered for sale to the public and that no bids were received for Sites 4 and 8 during the July 1965 bidding reported by The Hays Daily News. With no evidence of preservation, the Delia site appears to have followed the more common post-Atlas pattern of surplus disposal, salvage, rural reuse, and gradual deterioration or flooding.

The site is also part of the environmental afterlife of the Forbes Atlas E field. EPA lists FORBES (EX) ATLAS FAC S-8, EPA ID KSN000703134, at 4900 110th Rd., Delia, Kansas. EPA lists the site as not on the National Priorities List and as NFRAP, meaning that based on existing information it did not qualify for NPL listing. USACE's FUDS inventory lists FORBES AFB ATLAS S-08 in Jackson County at Delia under FUDS property number B07KS0206, with HTRW and CON/HTRW project categories. A U.S. Army Corps of Engineers site investigation report for Atlas Missile Sites S-1/S-8, Jefferson and Jackson Counties, Kansas, was published in March 2000 and is available through the USACE Digital Library / Wikimedia Commons metadata, confirming that the Delia site was investigated together with the Forbes S-1 site.

Current Status and Site Use

Atlas E Site 548-8 is a decommissioned former missile site on private rural property. It is not active, not preserved as a museum, and not open as a public historic site. The preferred coordinate identifies the former launcher area, not a visitor entrance or public access point.

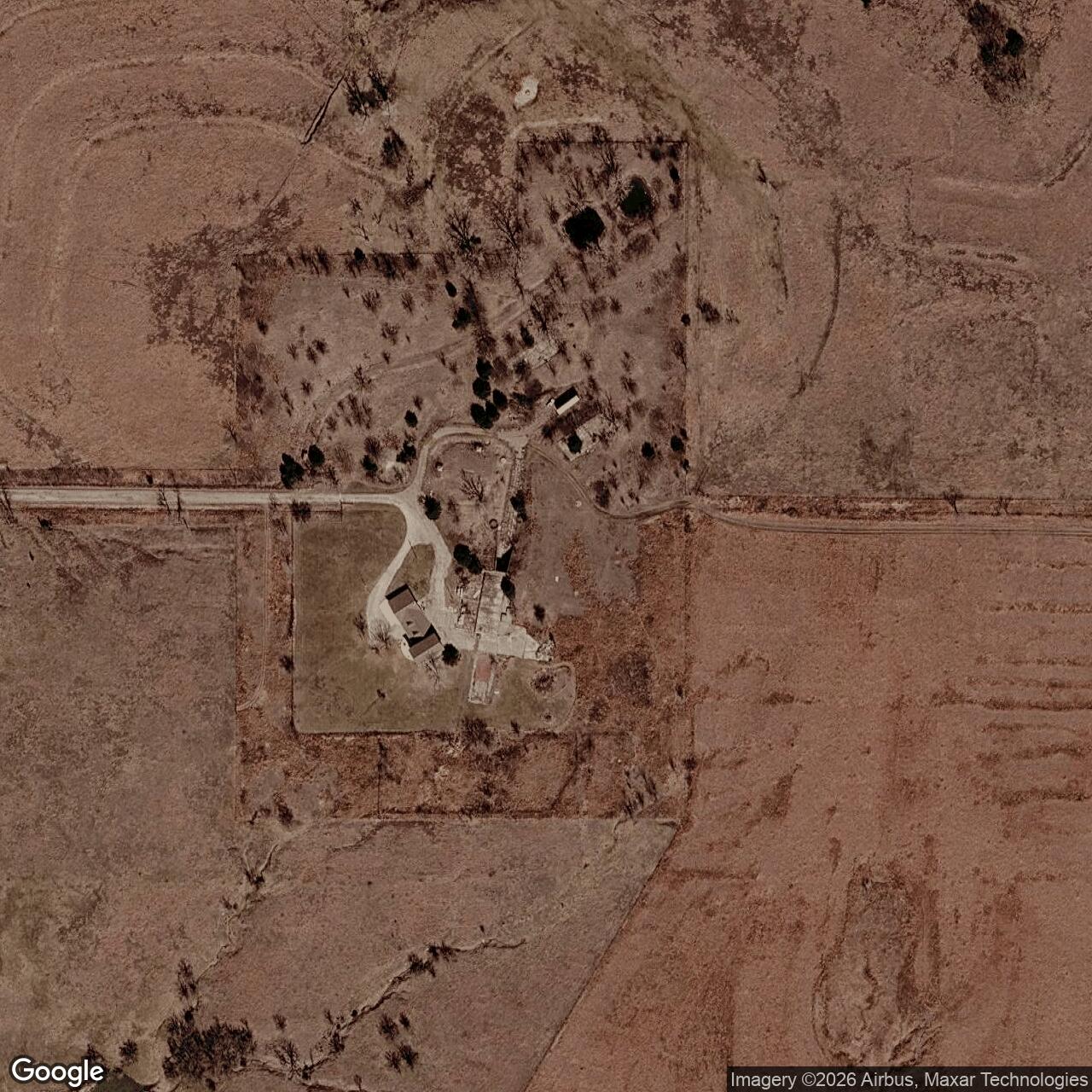

The site remains visible in public imagery and in historical-location photographs. Aerial images show the broad concrete and road layout associated with the former launch complex.

EPA identifies the site as non-federal, and the rural setting suggests private agricultural, storage, or rural-residential reuse rather than public interpretation. Because no official public-access source identifies a museum, park, or tour operation at Site 548-8, the appropriate public-access status is no public access / private property. The site should be viewed, if at all, only from lawful public roads and without trespassing.

Chronology

• 1958-10 Topeka learned that Forbes Air Force Base would support Atlas E missile sites in the surrounding area.
• 1959-02 The Air Force directed that the Forbes Atlas E missiles be placed at individual launch sites rather than in three three-missile complexes.
• 1959-06-09 Construction of the Forbes Atlas E launch-site program officially began.
• 1960-07-01 The 548th Strategic Missile Squadron was organized at Forbes Air Force Base.
• 1960-10/1960-11 A labor dispute involving hoisting engineers and electrical workers interrupted construction at the Forbes missile sites until a restraining order resolved the stoppage.
• 1961-01-24 The first Atlas missile for the Forbes field arrived at Forbes Air Force Base.
• 1961-10 By October 1961, all nine Forbes Atlas E sites had their missiles.
• 1961-10-16 Operational control of the Forbes Atlas E sites was turned over to Strategic Air Command through Second Air Force.
• 1962-10 During the Cuban Missile Crisis, public squadron-history sources state that all 548th SMS Atlas E sites were at high alert.
• 1964-05 Secretary of Defense Robert McNamara's directive accelerated the phaseout of Atlas and Titan I missile bases.
• 1965-01-04 The first Forbes Atlas missile went off alert.
• 1965-01-15 The Air Force announced that 100-kilowatt generators at Atlas and Titan missile sites would be salvaged.
• 1965-01-28 The last missile in the 548th Strategic Missile Squadron's arsenal went off alert.
• 1965-02-08 The last missile shipped from Forbes to Norton Air Force Base.
• 1965-03-25 The 548th Strategic Missile Squadron stood down / was inactivated.
• 1965-04-29 The wider Atlas/Titan ground transport phaseout to Norton Air Force Base was completed without accidents.
• 1965-07-23 Newspaper reporting summarized by Flint Hills Special stated that no bids were received for Forbes Sites 4 and 8 during the surplus-property bidding process.
• 2000-03-27 A USACE site investigation report for Atlas Missile Sites S-1/S-8, Jefferson and Jackson Counties, Kansas, was published.
• 2015 USACE's Kansas FUDS inventory listed FORBES AFB ATLAS S-08, Delia, Jackson County, under property number B07KS0206 with HTRW and CON/HTRW categories.
