Nike Missile Base SL-40 Hecker, Illinois - Photos

The mess hall was the common eating facility for personnel stationed at Nike Missile Base SL-40. This building was built in 1958 from standardized drawings approved by the Corps of Engineers, which were designed by the firm of Leon Chatelain, Jr., of Washington, D.C. Nike buildings were considered modified emergency buildings. Originally, they were to be pre-fabricated structures, but were rather unsightly and did not contribute to troop morale and, there fore, were changed to modified emergency design.

The mess hall is a masonay structure containing 2,680 square feet. It has concrete footings, foundation, and floor, cinder block walls, and a built-up roof. The kitchen portion has tile floors, sealed walls and ceiling, a stainless steel serving bar, a stainless steel dishwasher, a stainless steel sink, and restroom facilities. The dining area has panelled walls and a tiled floor. There is a dry storage area, a toilet, and a boiler room, which has a separate entrance from the outside. There are two vestibules, one double-door entry way into the dining room, and one door which leads into the kitchen. There are fourteen windows, and a chimney.

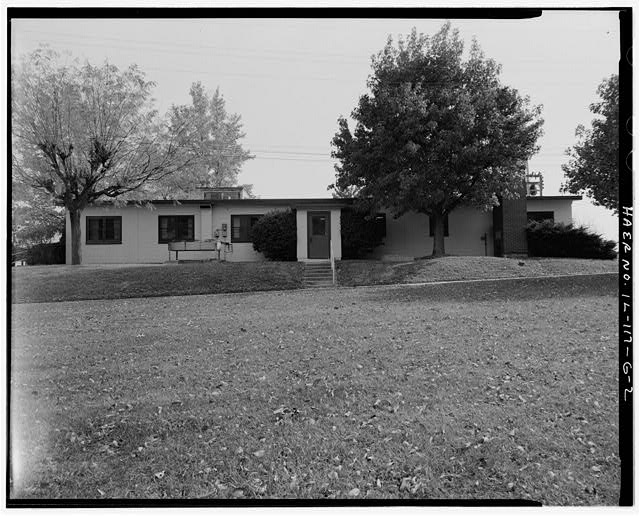

MESS HALL, FRONT, LOOKING SOUTH
MESS HALL, FRONT, LOOKING SOUTH

MESS HALL, RIGHT SIDE, LOOKING EAST
MESS HALL, RIGHT SIDE, LOOKING EAST

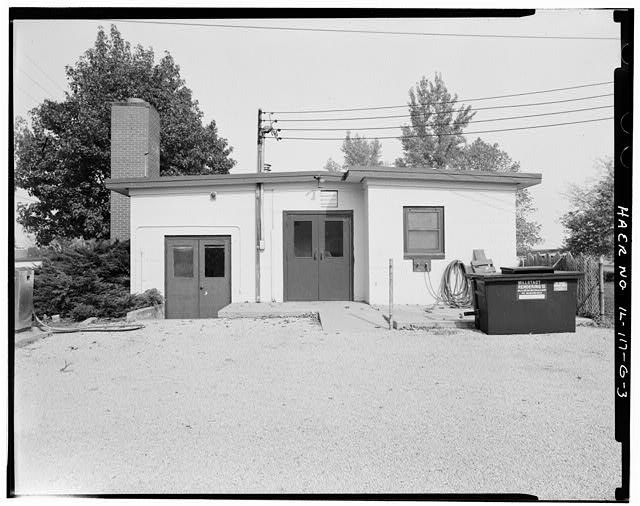

MESS HALL, REAR SIDE, LOOKING NORTH
MESS HALL, REAR SIDE, LOOKING NORTH

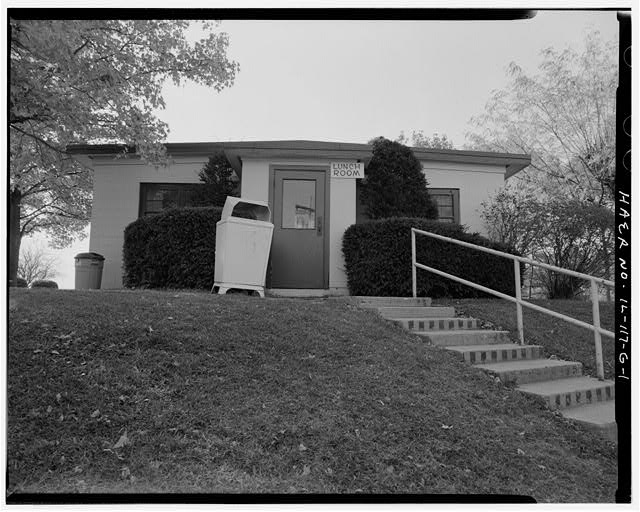

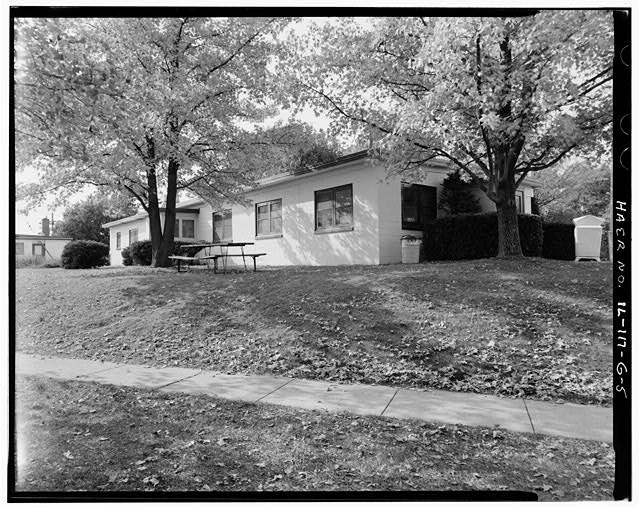

MESS HALL, FRONT AND LEFT SIDES, LOOKING SOUTHWEST
MESS HALL, FRONT AND LEFT SIDES, LOOKING SOUTHWEST

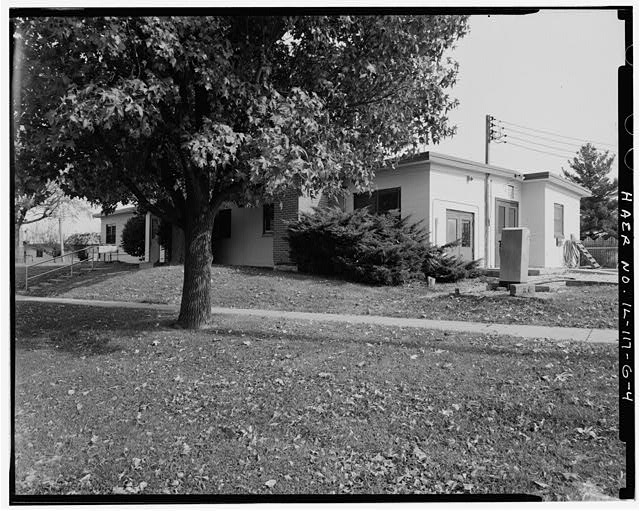

MESS HALL, RIGHT AND REAR SIDES, LOOKING NORTHEAST
MESS HALL, RIGHT AND REAR SIDES, LOOKING NORTHEAST

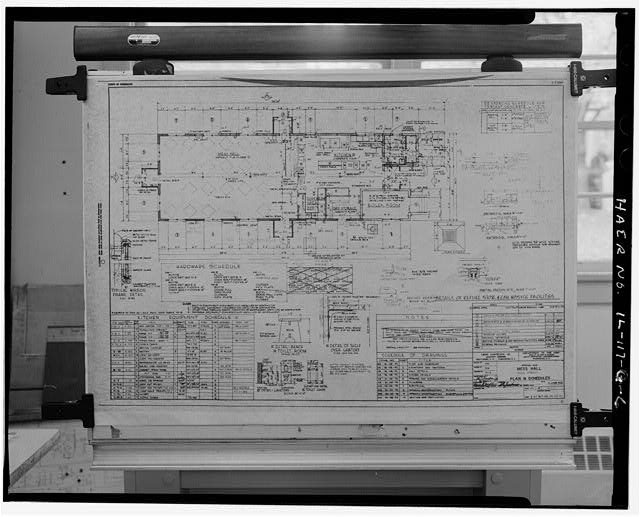

PHOTOCOPY, PLAN AND SCHEDULE DRAWING OF MESS HALL
PHOTOCOPY, PLAN AND SCHEDULE DRAWING OF MESS HALL

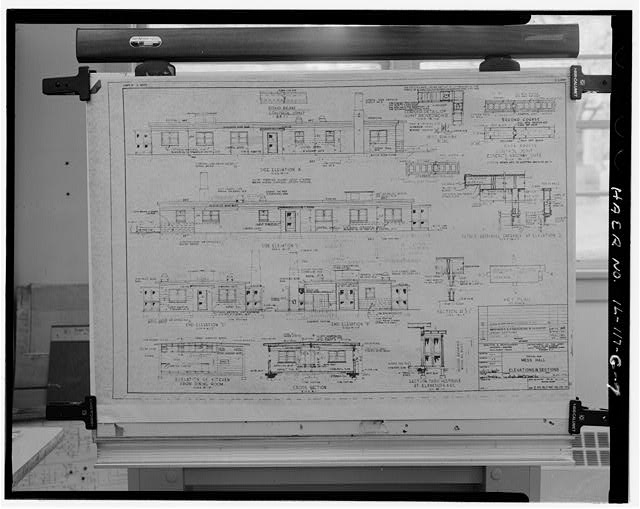

PHOTOCOPY, ELEVATION AND SECTION DRAWING OF MESS HALL
PHOTOCOPY, ELEVATION AND SECTION DRAWING OF MESS HALL

Basketball Court

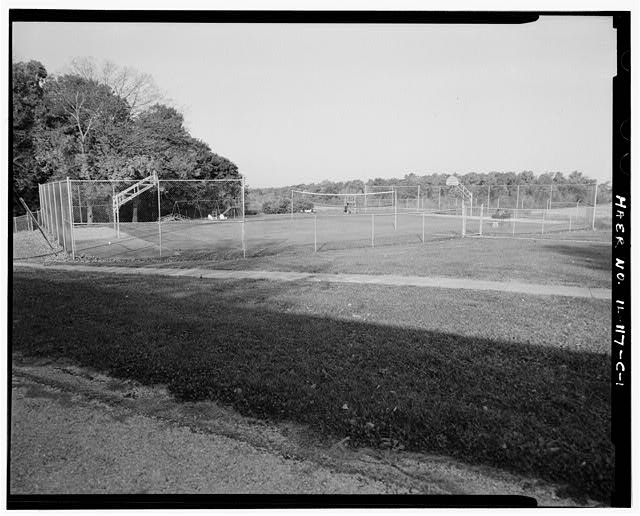

BASKETBALL COURT, LOOKING WEST
BASKETBALL COURT, LOOKING WEST

Radar Pad

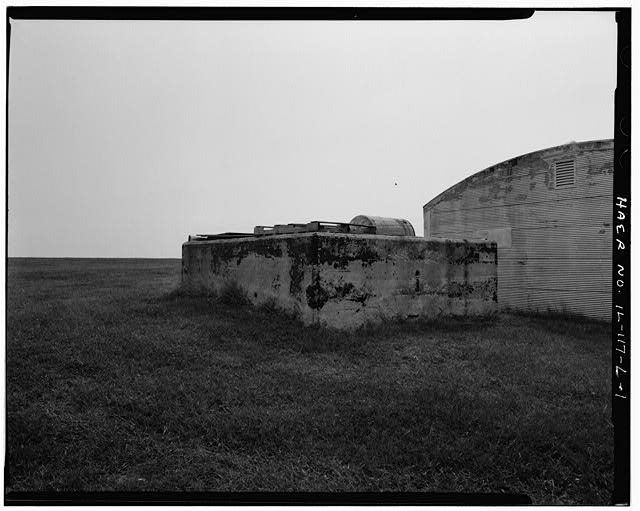

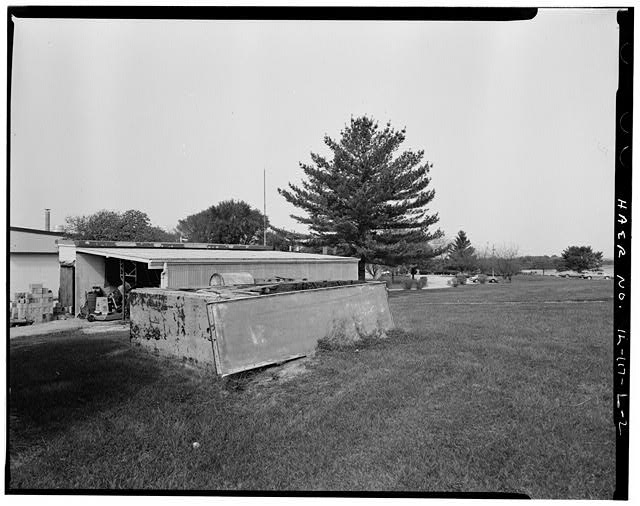

RADAR PAD No. 2, LOOKING NORTHWEST
RADAR PAD No. 2, LOOKING NORTHWEST

RADAR PAD No. 1, LOOKING SOUTHEAST
RADAR PAD No. 1, LOOKING SOUTHEAST

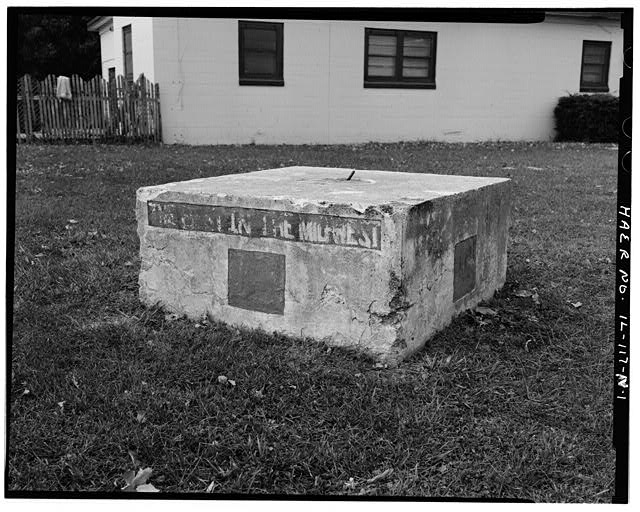

RADAR PAD No. 1, LOOKING NORTH
RADAR PAD No. 1, LOOKING NORTH
